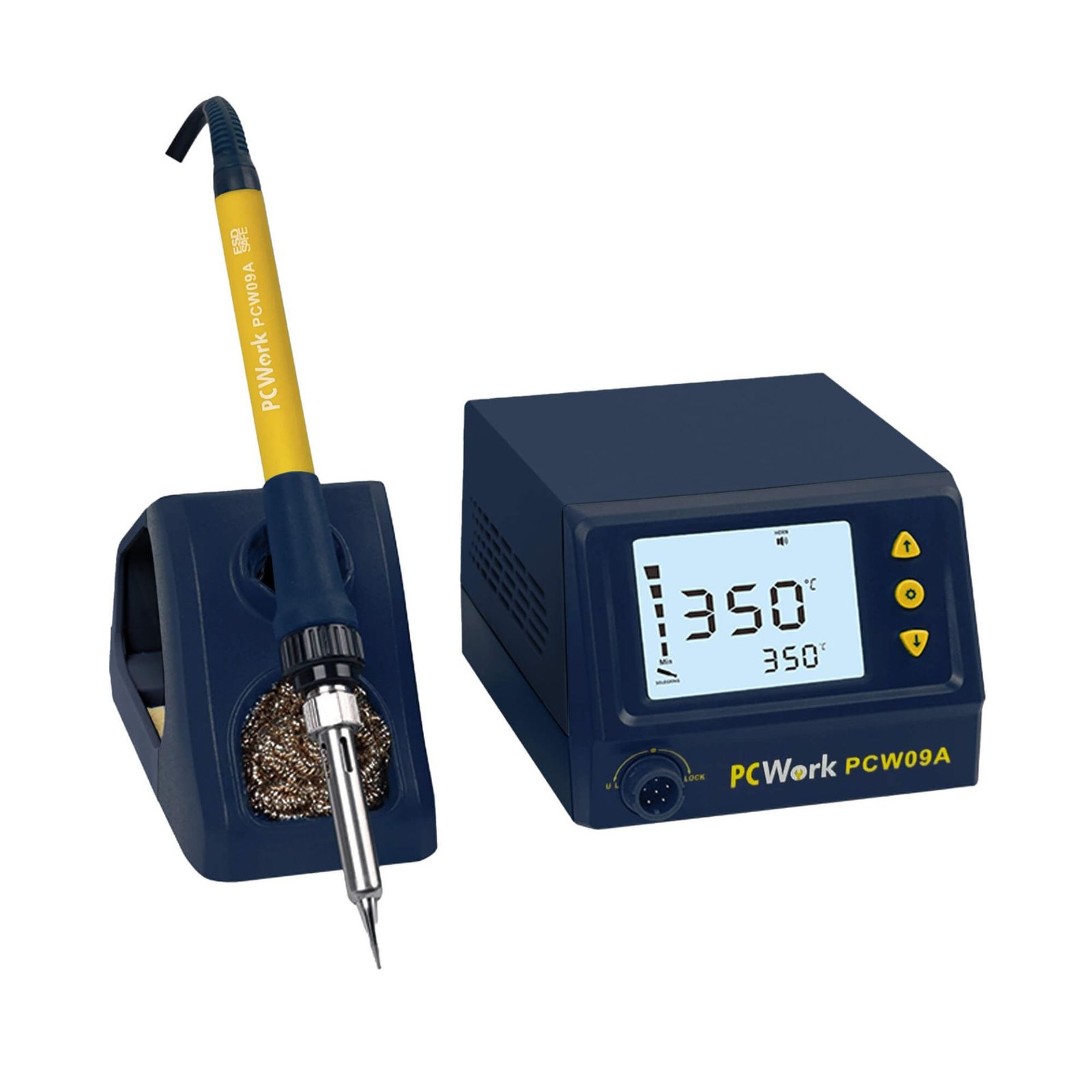

• PCW09A Digital Soldering Station Description
• The PCW09A is a high quality and reliable digital soldering station, which is perfectly suitable for leaded as well as lead-free soldering. Thanks to the ceramic heating element, temperatures in the range of 180 - 480 °C can be achieved with a short heat-up time, while the built-in microprocessor ensures particularly good temperature stabilization. In addition, the soldering station is optionally password-protected to prevent unwanted changes to the temperature settings. The large HD LED dual display shows both the set and the current temperature at the soldering tip, and you can easily switch the display between °C and °F. The high quality 900M-T-K soldering tip has a long service life and can be quickly and easily interchanged with all other 900M compatible tips. The soldering iron holder has an integrated soldering tip cleaner made of brass wool and a cleaning sponge, which can prevent unwanted dripping of solder due to its clever placement in the soldering iron holder, thus ensuring clean work. Thanks to its ESD-protected design, the soldering station protects its components from unwanted electrostatic discharge.
• In summary, the intelligent and particularly safely designed PCW09A soldering station is the perfect choice at an attractive price for a wide range of soldering tasks. It is not only suitable for professionals, but also for students and hobbyists.
• The PCW09A complies with all EU safety standards.
• PCW09A Digital Soldering Station Features
• Station power: 60W
• Soldering iron with 6-pin connector
• High quality 900M-T-K soldering tip
• Easy tip change, all 900M tips fit for the soldering iron
• Ceramic heating element
• Fast heat up time
• Stable temperature thanks to integrated microprocessor
• Large HD LED dual display
• Soldering iron holder with soldering tip cleaner (brass wool) and cleaning sponge
• Password protected to avoid unwanted changes
• ESD protected
• Temperature controlled station
• Temperature range of the soldering iron: 180 - 480 ° C
• Supply voltage soldering iron: 24V
• Particularly compact and aesthetic design
• Dimensions: 128x104x99mm
• Weight: approx. 1kg
• Scope of delivery: PCW09A soldering station, soldering iron holder, cleaning sponge, soldering tip cleaner, soldering iron with 6-pin connector, 900M-T-K soldering tip, power cord, user manual (GER, EN, FR, PT, GR, IT, ES, PL, ET, DK, SE)
