Apraksts

• Manufacturer NINIGI
• Connector pin header
• Type of connector pin strips
• Kind of connector male
• Number of pins 40
• Connector variant double deck
• Spatial orientation  straight
• Contacts pitch 2.54mm
• Electrical mounting THT
• Type of pin configuration 2x20
• Contact plating gold-plated
• Maximum current 3A
• Max. operating voltage 250V AC

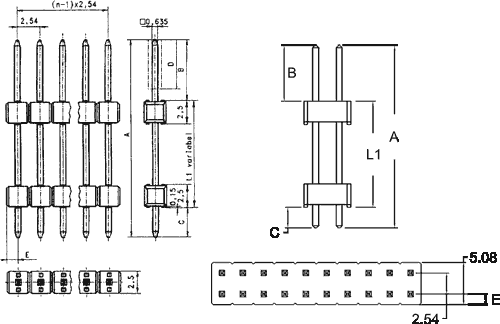

• L1 dimension 10.4mm
• E dimension 1.27mm
• Overall length 19.4mm
• B dimension 6mm
• C dimension 3mm
• Additional information
• Gross weight: 3.903 g
• Manufacturer part number: ZL2019-40

Parametri

2x20
40
2,54mm
Spraudnis/Spraudnis

Papildu dokumentācija
