Apraksts

• Manufacturer NINIGI
• Connector pin header
• Type of connector pin strips
• Kind of connector male
• Number of pins 20
• Connector variant double deck
• Spatial orientation  straight
• Contacts pitch 2.54mm
• Electrical mounting THT
• Type of pin configuration 1x20
• Contact plating gold-plated
• Maximum current 3A
• Max. operating voltage 250V AC
• L1 dimension 35.5mm
• E dimension 1.27mm
• Overall length 45.3mm
• B dimension 6.5mm
• C dimension 3.3mm

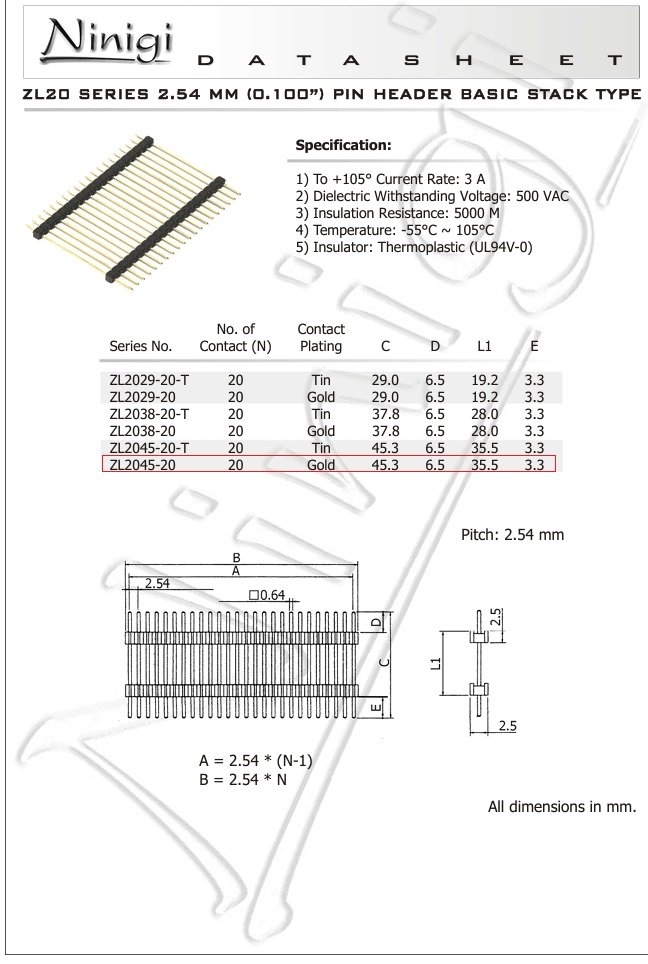

• Dimensions see
• Additional information
• Gross weight: 3.77 g
• Manufacturer part number: ZL2045-20

Parametri

20
20
2,54mm
Spraudnis/Spraudnis

Papildu dokumentācija
