Apraksts

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: N
• Mounting Style: Through Hole

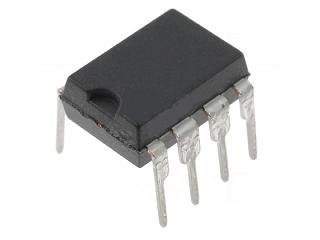

• Package/Case: PDIP-8
• Number of Channels: 1 Channel
• Supply Voltage - Max: 36 V
• GBP - Gain Bandwidth Product: 1 MHz
• SR - Slew Rate: 10 V/us
• Vos - Input Offset Voltage: 7.5 mV
• Supply Voltage - Min: 10 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Ib - Input Bias Current: 250 nA
• Operating Supply Current: 3 mA
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 70 dB
• en - Input Voltage Noise Density: 15 nV/sqrt Hz
• Series: LM301A-N-MIL
• Packaging: Tube
• Height: 3.3 mm
• Length: 9.27 mm
• Product: Operational Amplifiers
• Supply Type: Dual
• Technology: Bipolar
• Width: 6.35 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 9 V, +/- 12 V, +/- 15 V
• In - Input Noise Current Density: 0.1 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 5 V
• Operating Supply Voltage: 10 V to 36 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 40
• Subcategory: Amplifier ICs
• Voltage Gain dB: 104.08 dB
• Unit Weight: 762 mg
