Apraksts

• Manufacturer: STMicroelectronics
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Details
• Mounting Style: Through Hole

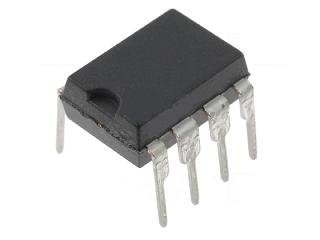

• Package/Case: PDIP-8
• Number of Channels: 2 Channel
• Supply Voltage - Max: 28 V, +/- 14 V
• GBP - Gain Bandwidth Product: 1.2 MHz
• Output Current per Channel: 1 A
• SR - Slew Rate: 2 V/us
• Vos - Input Offset Voltage: 10 mV
• Supply Voltage - Min: 4 V, +/- 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 150 C
• Ib - Input Bias Current: 1 uA
• Operating Supply Current: 15 mA
• Shutdown: Shutdown
• CMRR - Common Mode Rejection Ratio: 66 dB
• Series: L2722
• Packaging: Tube
• Amplifier Type: General Purpose Amplifier
• Height: 3.32 mm
• Length: 10.92 mm (Max)
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: Bipolar
• Width: 6.6 mm (Max)
• Brand: STMicroelectronics
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• Maximum Dual Supply Voltage: +/- 14 V
• Minimum Dual Supply Voltage: +/- 2 V
• Operating Supply Voltage: 4 V to 28 V, +/- 2 V to +/- 14 V
• Pd - Power Dissipation: 1 W
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 60 dB
