Apraksts

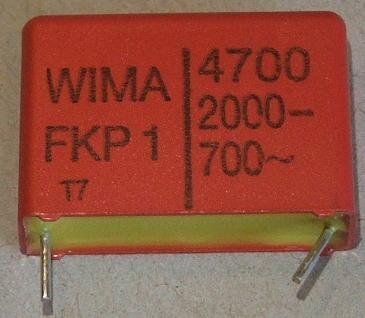

• Manufacturer WIMA
• Type of capacitor polypropylene
• Capacitance 4.7nF
• Body dimensions 8.5x18.5x26.5mm
• Mounting THT
• Tolerance ±5%
• Terminal pitch 22.5mm
• Operating temperature -55...100°C
• Climate class 55/100/56
• Pulse resistance 29kV/μs
• Capacitor application for high current applications,  high frequency circuits,  impulse circuits
• Flammability rating UL94V-0
• Kind of material flame retardant
• Max. operating voltage 700V AC,  2kV DC
• Capacitors features
• low dielectric loss factor
• self-healing feature
• Additional information
• Gross weight: 5.175 g
• Manufacturer part number: FKP1U014705F00JSSD

Parametri

4.7nF
2000VDC
WIMA
700VAC
±5%
