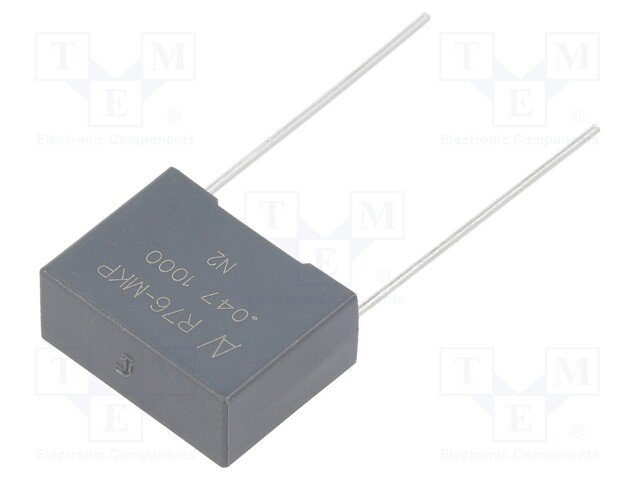

Apraksts

• Manufacturer KEMET
• Type of capacitor polypropylene
• Capacitance 0.047µF
• ESR value 13.55mΩ
• Mounting THT
• Tolerance ±5%
• Operating temperature -55...110°C
• Body dimensions 18x13.5x7.5mm
• Terminal pitch 15mm
• Max. operating current 5.398A
• Climate class 55/105/56 IEC 60068-1
• Pulse resistance 3500V/μs
• Series R76
• Enclosure material self-extinguishing, UL94V-0
• Lead length 25mm
• Max. operating voltage 600V AC,  1000V DC
• Additional information
• Gross weight: 2.53 g
• Manufacturer part number: R76QI24705050J

Parametri

47nF
1000VDC
KEMET
600VAC
±5%
