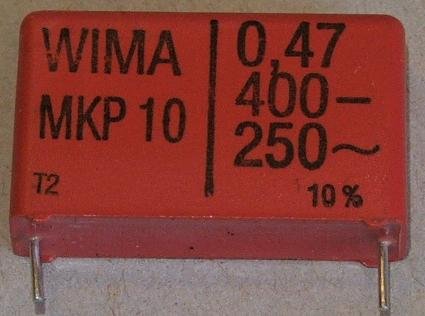

Apraksts

• Manufacturer WIMA
• Type of capacitor polypropylene
• Capacitance 470nF
• Terminal pitch 27.5mm
• Tolerance ±10%
• Capacitor application high frequency circuits,  impulse circuits
• Body dimensions 9x19x31.5mm
• Leads dimensions len. 6mm
• Climate class 55/100/56
• Operating temperature -55...100°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 400V/μs
• Mounting THT
• Max. operating voltage 250V AC,  400V DC
• Capacitors features
• low dielectric loss factor
• low ESR resistance value
• Additional information
• Gross weight: 6.267 g
• Manufacturer part number: MKP1G034706A00KSSD

Parametri

470nF
400VDC
WIMA
250VAC
±10%

Papildu dokumentācija
