Apraksts

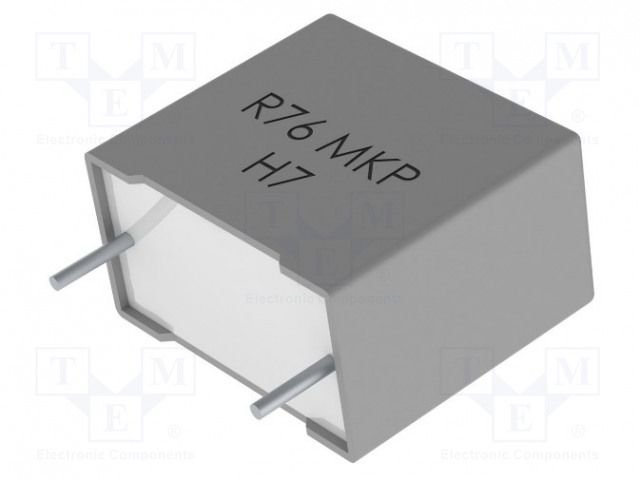

• Manufacturer KEMET
• Type of capacitor polypropylene
• Capacitance 33nF
• Terminal pitch 15mm
• Tolerance ±5%
• Body dimensions 18x6x12mm
• Climate class 55/105/56 IEC 60068-1
• Operating temperature -55...105°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 2.5kV/μs
• Mounting THT
• Capacitors series R76
• Lead length 30mm
• Alias 76PI23304030J
• Capacitance - µF 0.033µF
• Conform to the norm AEC-Q200
• Max. operating voltage 400V AC, 630V DC Additional information
• Gross weight: 1.9 g

Parametri

33nF
630VDC
KEMET
400VAC
±5%

Papildu dokumentācija
