Apraksts

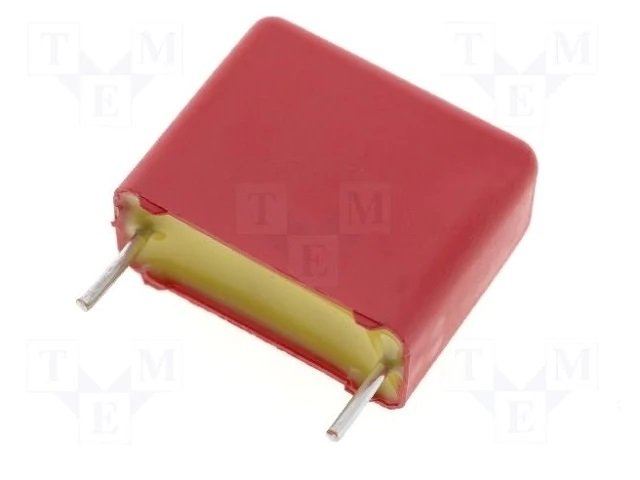

• Manufacturer WIMA
• Type of capacitor polypropylene
• Capacitance 22nF
• Terminal pitch 15mm
• Tolerance ±20%
• Capacitor application high frequency circuits,  impulse circuits
• Body dimensions 5x11x18mm
• Leads dimensions L 6mm
• Climate class 55/100/56
• Operating temperature -55...100°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 1.8kV/μs
• Mounting THT
• Max. operating voltage 400V AC,  630V DC
• Capacitors features
• low dielectric loss factor
• low ESR resistance value
• Papildu informācijas
• Masa bruto: 1.378 g
• Oriģināls simbols: MKP1J022204B00MSSD

Parametri

22nF
630VDC
WIMA
400VAC
±20%
