Apraksts

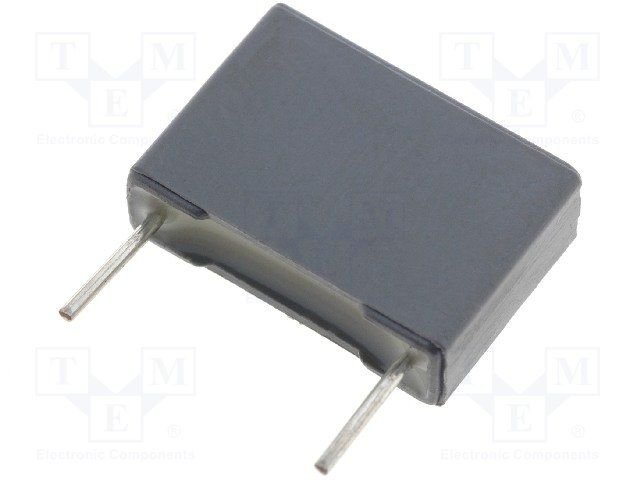

• Manufacturer KEMET
• Type of capacitor polyester
• Capacitance 22nF
• Max. operating voltage 400V DC, 200V AC
• Terminal pitch 10mm
• Tolerance ±10%
• Body dimensions 13 x 4 x 9mm
• Climate class 55/105/56 IEC 60068-1
• Operating temperature -55...105°C
• Capacitors series R60
• Pulse resistance 30V/μs
• Mounting THT
• Capacitance - µF 0.022µF
• Conform to the norm AEC-Q200
• Lead length 4mm

Parametri

22nF
400VDC
KEMET
200VAC
±10%

Papildu dokumentācija
