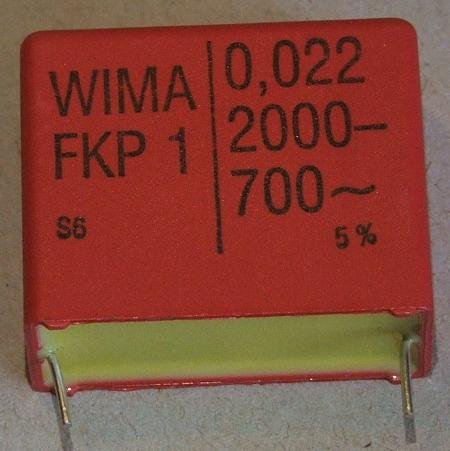

Apraksts

• Manufacturer WIMA
• Type of capacitor polypropylene
• Capacitance 22nF
• Body dimensions 15x26x31.5mm
• Mounting THT
• Tolerance ±5%
• Terminal pitch 27.5mm
• Operating temperature -55...100°C
• Climate class 55/100/56
• Pulse resistance 13kV/μs
• Capacitor application for high current applications,  high frequency circuits,  impulse circuits
• Flammability rating UL94V-0
• Kind of material flame retardant
• Max. operating voltage 700V AC,  2kV DC
• Capacitors features
• low dielectric loss factor
• self-healing feature
• Additional information
• Gross weight: 15.26 g
• Manufacturer part number: FKP1U022206F00JSSD

Parametri

22nF
2000VDC
WIMA
700VAC
±5%
