Apraksts

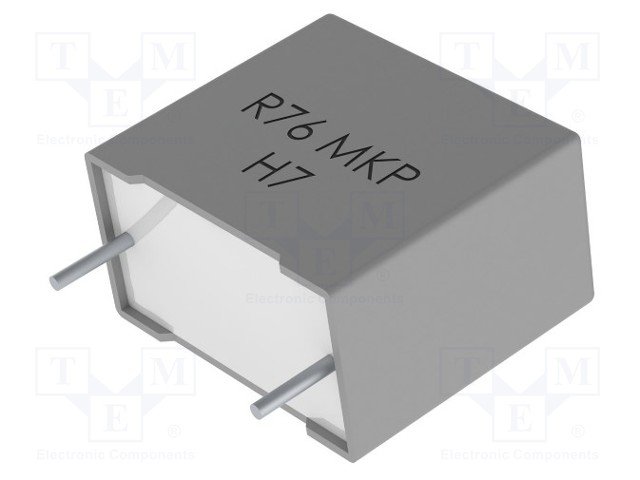

• Manufacturer KEMET
• Type of capacitor polypropylene
• Capacitance 22nF
• Terminal pitch 22.5mm
• Tolerance ±5%
• Body dimensions 26.5x6x15mm
• Climate class 55/105/56 IEC 60068-1
• Operating temperature -55...105°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 3kV/μs
• Mounting THT
• Series R76
• Lead length 30mm
• Alias 76TN22204030J
• Max. operating voltage 650V AC,  1.6kV DC
• Conform to the norm AEC-Q200
• Additional information
• Gross weight: 3.25 g
• Manufacturer part number: R76TN22204030J

Parametri

22nF
1600VDC
KEMET
650VAC
±5%

Papildu dokumentācija
