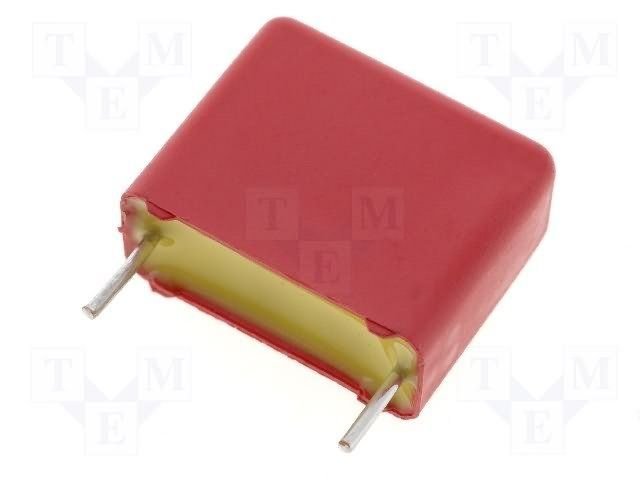

Apraksts

• Manufacturer WIMA
• Capacitor type polypropylene
• Capacitance 1nF
• Terminal pitch 22.5mm
• Tolerance ±5%
• Capacitor application high frequency circuits, for high current applications, impulse circuits
• Body dimensions 5 x 14 x 26.5mm
• Climate class 55/100/56
• Operating temperature -55...100°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 51kV/μs
• Mounting THT
• Max. operating voltage 700V AC, 2000V DC
• Capacitance - pF 1000pF Capacitors features:
• low dielectric loss factor
• self-healing feature

Parametri

1nF
2000VDC
WIMA
700VAC
±5%
