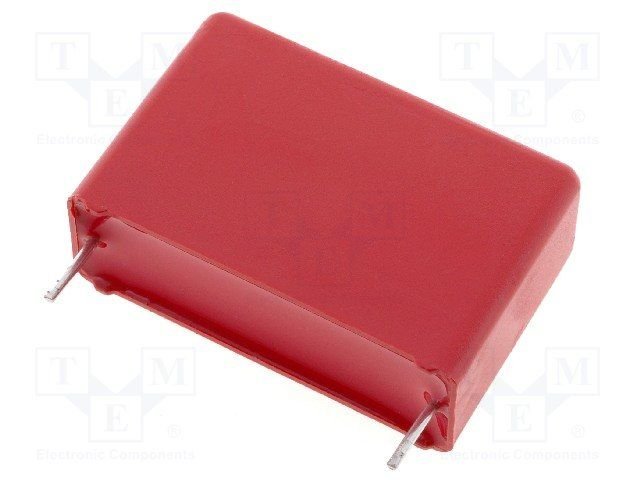

Apraksts

• Manufacturer WIMA
• Type of capacitor polypropylene
• Capacitance 1µF
• Terminal pitch 37.5mm
• Tolerance ±20%
• Capacitor application high frequency circuits, impulse circuits
• Body dimensions 24 x 45.5 x 41.5mm
• Leads dimensions len. 6mm
• Climate class 55/100/56
• Operating temperature -55...100°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 500V/μs
• Mounting THT
• Max. operating voltage 650V AC, 1600V DC
• Capacitance - nF 1000nF Capacitors features:
• low ESR resistance value
• low dielectric loss factor

Parametri

1mkF
1500VDC
WIMA
650VAC
±20%
