Apraksts

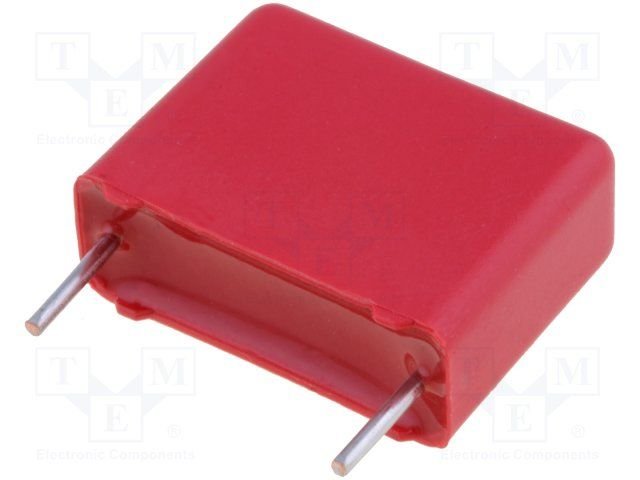

• Manufacturer WIMA
• Type of capacitor polypropylene
• Capacitance 10nF
• Terminal pitch 7.5mm
• Tolerance ±10%
• Capacitor application high frequency circuits, timing circuits, oscillating circuits
• Body dimensions 3x8.5x10mm
• Leads dimensions len. 6mm
• Climate class 55/100/56
• Operating temperature -55...100°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 500V/μs
• Mounting THT
• Max. operating voltage 280V AC, 630V DC Additional information
• Gross weight: 0.36 g

Parametri

10nF
630VDC
WIMA
280VAC
±10%

Papildu dokumentācija
