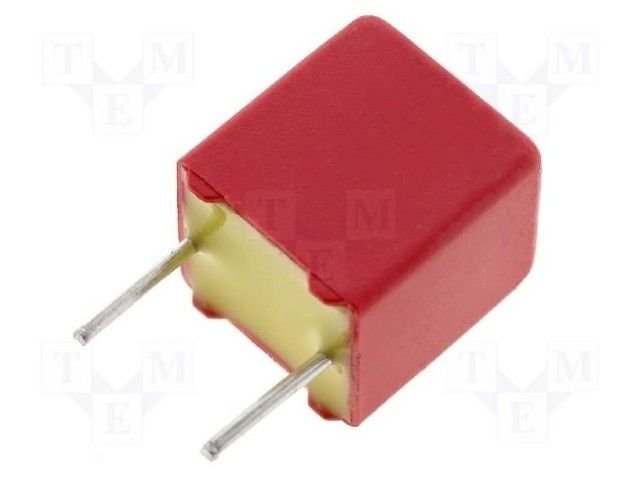

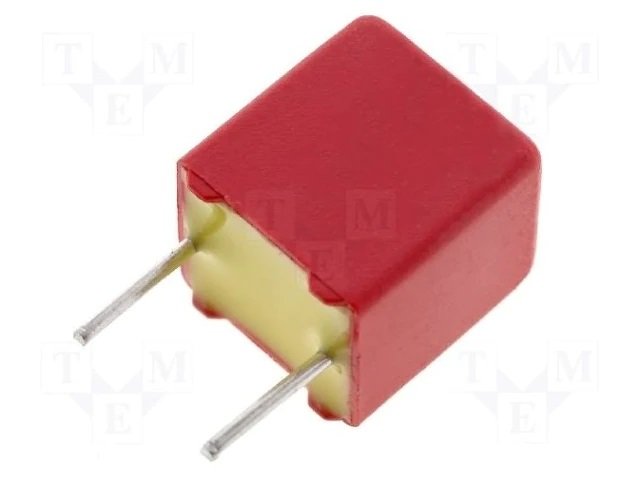

100pF/100VDC, 63VAC, ±2.5%, polipropilēns kondensātors 5mm, 4.5x6x7.2mm, WIMA
100pF/100VDC, 63VAC, ±2.5%, polipropilēns kondensātors 5mm, 4.5x6x7.2mm, WIMA
100pF/100VDC, 63VAC, ±2.5%, polipropilēns kondensātors 5mm, 4.5x6x7.2mm, WIMA 100pF/100VDC, 63VAC, ±2.5%, polipropilēns kondensātors 5mm, 4.5x6x7.2mm, WIMA

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

100pF/100VDC, 63VAC, ±2.5%, polipropilēns kondensātors 5mm, 4.5x6x7.2mm, WIMA

Cena: 0.37 €
00027795
FKP2-100P/100
108

  • Apraksts

    • Manufacturer WIMA
    • Type of capacitor polypropylene
    • Capacitance 100pF
    • Terminal pitch 5mm
    • Tolerance ±2.5%
    • Capacitor application AC applications
    • Body dimensions 4.5x6x7.2mm
    • Leads dimensions len. 6mm
    • Climate class 55/100/56
    • Operating temperature -55...100°C
    • Enclosure material self-extinguishing, UL94V-0
    • Pulse resistance 1kV/μs
    • Mounting THT
    • Max. operating voltage 63V AC, 100V DC Capacitors features
    • low dielectric loss factor
    • low, negative temperature coefficient
    • Additional information
    • Gross weight: 0.288 g
    • Manufacturer part number: FKP2D001001D00HSSD

    Parametri

    100pF
    100VDC
    WIMA
    63VAC
    ±2.5%
