Apraksts

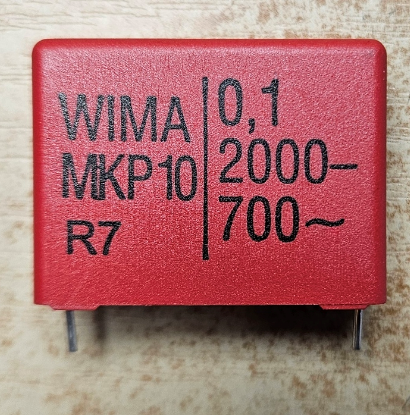

• Manufacturer WIMA
• Capacitor type polypropylene
• Capacitance 100nF
• Operating voltage 2kV DC, 700V AC
• Terminal pitch 27.5mm
• Tolerance ±20%
• Capacitor application high frequency circuits, impulse circuits
• Body dimensions 13 x 24 x 31.5mm
• Leads dimensions len. 6mm
• Climate class 55/100/56
• Operating temperature -55...100°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 1.4kV/μs
• Mounting THT

Parametri

100nF
2000VDC
WIMA
700VAC
±20%
