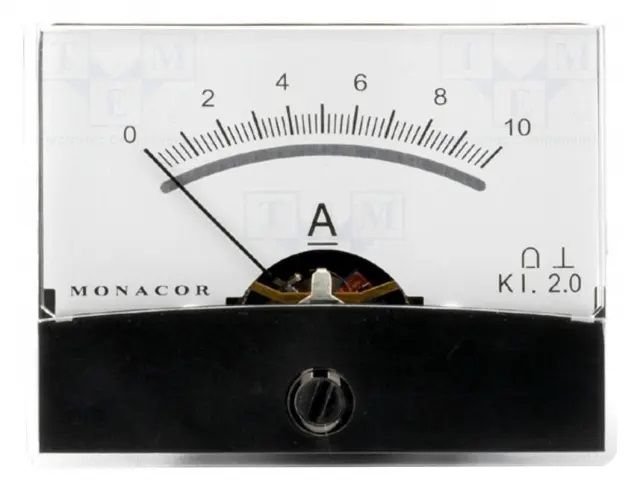

Apraksts

• Manufacturer MONACOR
• Type of meter amperometer
• Kind of measurement direct measurement
• Kind of display analogue
• Mounting on panel
• DC current measuring range 0...10A
• Kind of meter mounting
• Accuracy class 2
• Mechanical mounting 4 screws on the meters rear
• Measurement DC current
• Internal resistance 6mΩ
• Dimensions (W x H x D) 60.3x46.3x39mm
• Mounting hole diameter Ø37.5mm
• Measuring instrument features possibility of scale illumination by means of two 6V bulbs Additional information
• Gross weight: 70 g
• Manufacturer part number: PM-2/10A
