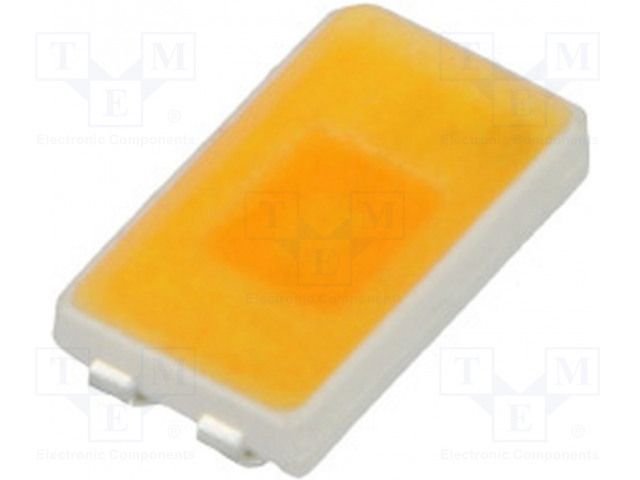

Gaismas diode SMD, aukstā balts(5000(typ)K), 5630(5.6x3x0.9mm), 59...63.5lm, 2.9...3.3V/120mA, 120grad., 5630
Gaismas diode SMD, aukstā balts(5000(typ)K), 5630(5.6x3x0.9mm), 59...63.5lm, 2.9...3.3V/120mA, 120grad., 5630

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Gaismas diode SMD, aukstā balts(5000(typ)K), 5630(5.6x3x0.9mm), 59...63.5lm, 2.9...3.3V/120mA, 120grad., 5630

Cena: 0.24 €
00027071
LTW-5630AZL50OR/H4
67
  • Apraksts

    • Manufacturer LITEON
    • Type of diode LED
    • Mounting SMD
    • Case 5630
    • LED colour white cold
    • Luminosity 59...63.5lm
    • Colour temperature 5000K
    • Min. colour rendering index 80

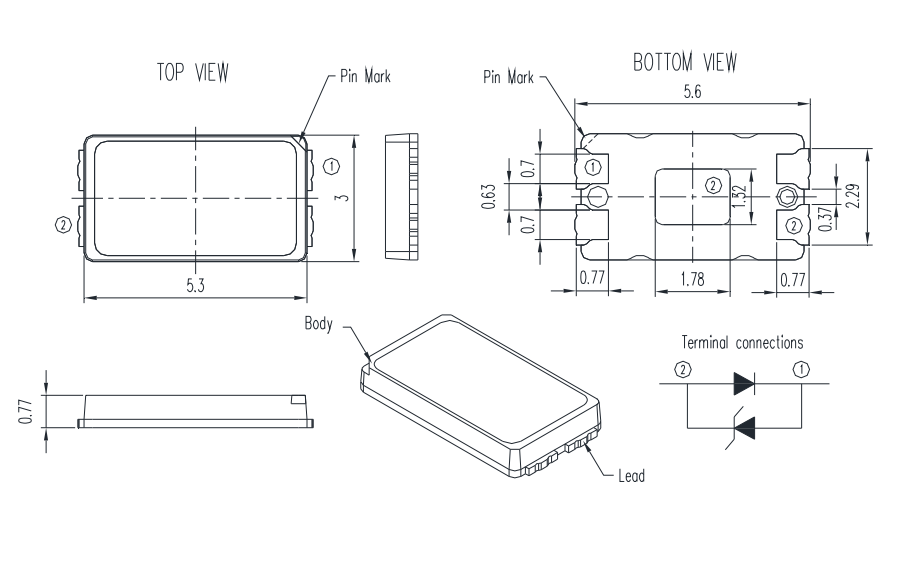

    • Dimensions 5.6x3x0.9mm
    • Viewing angle 120°
    • LED current 120mA
    • LED lens orange
    • Front flat
    • Light source efficiency 169lm/W
    • Binning OR/H4
    • Operating voltage 2.9...3.3V
    • Characteristics see
    • Additional information
    • Gross weight: 0.013 g
    • Manufacturer part number: LTW-5630AZL50-XX/OR/H4X

    Parametri

    5630
    SMD
    auksta balta
    5000K
    2.9...3.3V
    120mA
    59...63.5lm
