Apraksts

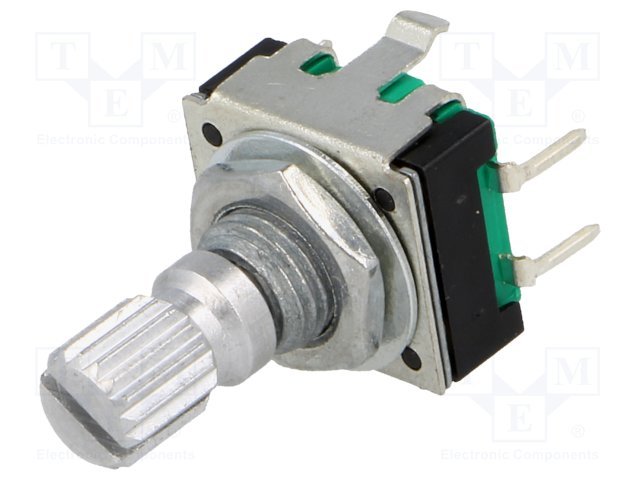

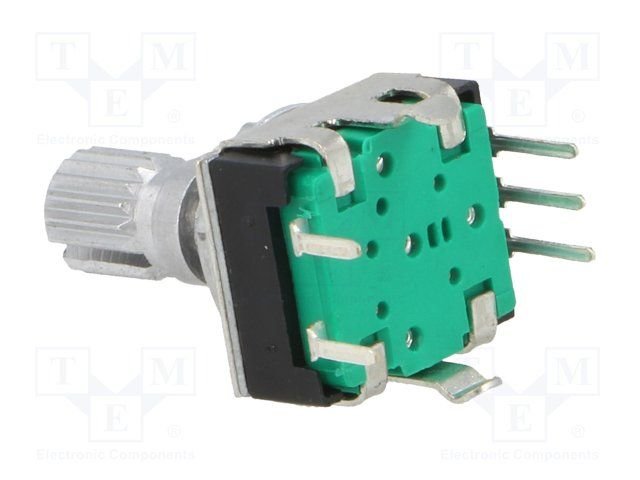

• Manufacturer BOURNS
• Type of encoder incremental
• Mounting THT
• Resolution 24imp/revol.
• Output signal two phase A and B
• Mechanical durability 30000cycles
• Operating temperature -30...70°C
• Max. operating current 10mA
• Shaft surface knurled
• Shaft length 15mm
• Operating voltage 5V DC
• Shaft diameter 6mm
• Number of positions 24
• Encoders features with button
• Key stroke 0.5mm Additional information
• Gross weight: 4.6 g
