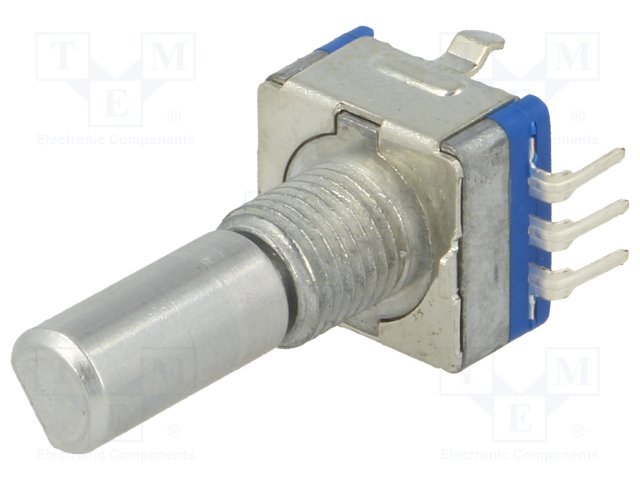

Apraksts

• Manufacturer SR Passives
• Type of encoder incremental
• Mounting THT
• Resolution 20imp/revol.
• Output signal two phase A and B
• Mechanical durability 30000cycles
• Max. operating current 5mA
• Shaft surface D spring
• Shaft length 13mm
• Operating voltage 5V DC
• Shaft diameter 6mm
• Number of positions 20
• Cut depth 1.5mm
• Encoders features with button
• Thread length 7mm
• L shaft length 20mm

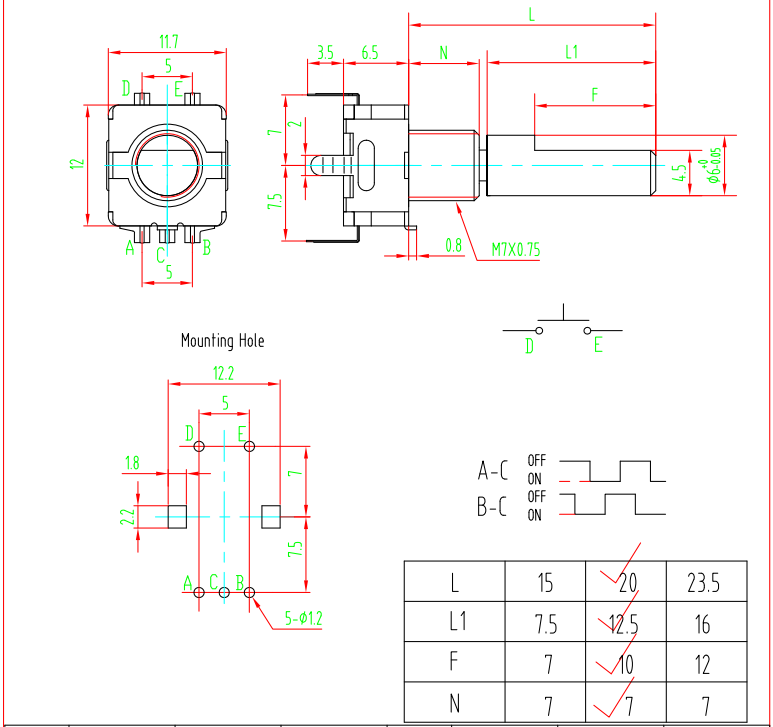

• Body dimensions 11.7x13.75x6.5mm
• Spatial orientation 1 vertical
• Terminal pitch 2.54x14.5mm Additional information
• Gross weight: 5.49 g
