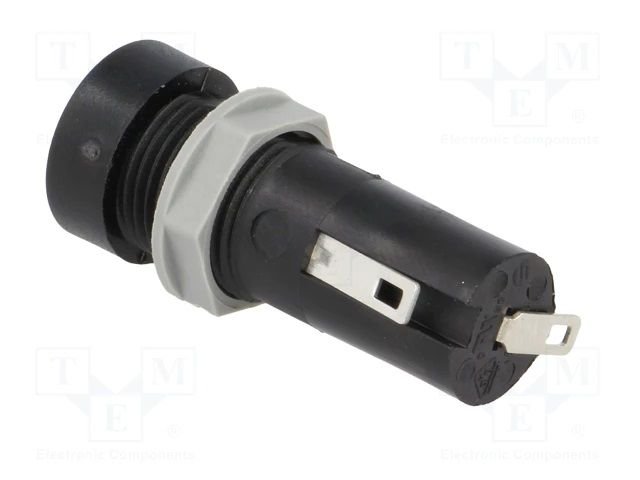

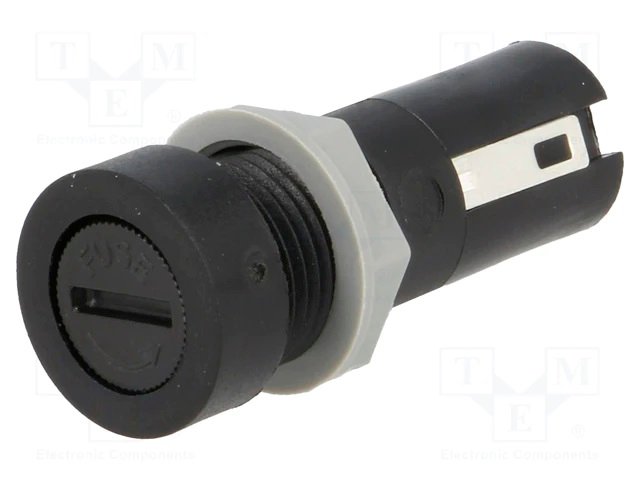

Drošinātāju turētājs 5x20mm, 10A, 250VAC, par paneļu
Drošinātāju turētājs 5x20mm, 10A, 250VAC, par paneļu
Drošinātāju turētājs 5x20mm, 10A, 250VAC, par paneļu
Drošinātāju turētājs 5x20mm, 10A, 250VAC, par paneļu Drošinātāju turētājs 5x20mm, 10A, 250VAC, par paneļu Drošinātāju turētājs 5x20mm, 10A, 250VAC, par paneļu

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Drošinātāju turētājs 5x20mm, 10A, 250VAC, par paneļu

Cena: 1.35 €
00027851
ZHL55
16
  • Apraksts

    • Manufacturer Stelvio Kontek
    • Type of fuse accessories fuse holder
    • Fuses application cylindrical fuses
    • Fuse size 5x20mm
    • Maximum current 10A
    • Rated voltage  250V AC
    • Mounting on panel
    • Operating temperature -30...85°C
    • Mounting hole diameter Ø12.7mm
    • Colour black
    • Flammability rating UL94V-0
    • Body material thermoplastic
    • Contact resistance 5mΩ
    • Additional information
    • Gross weight: 2.7 g
    • Manufacturer part number: PTF/55

    Parametri

    5x20mm
    Panelim

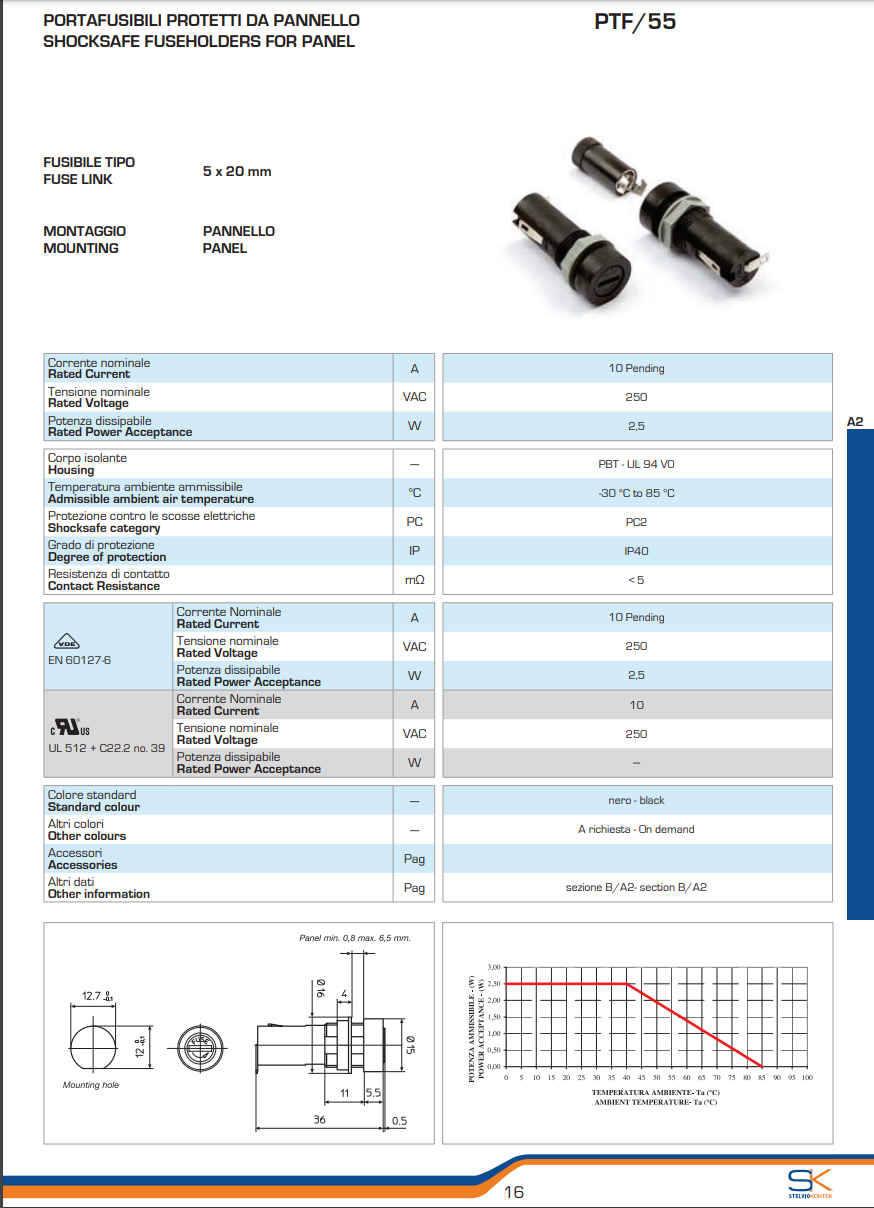

    Papildu dokumentācija
