Apraksts

• Manufacturer Stelvio Kontek
• Type of fuse accessories fuse holder
• Fuses application cylindrical fuses
• Fuse size 5x20mm
• Maximum current 10A
• Rated voltage 250V AC
• Mounting on panel
• Operating temperature -30...85°C

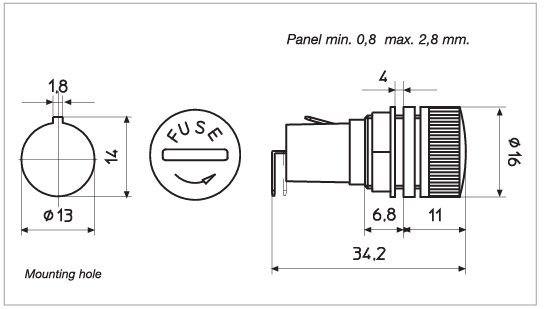

• Mounting hole diameter Ø13mm
• Colour black
• Flammability rating UL94V-0
• Body material thermoplastic
• Contact resistance 5mΩ Additional information
• Gross weight: 5.3 g

Parametri

Panelim
5 x 20mm
