Apraksts

• Specification

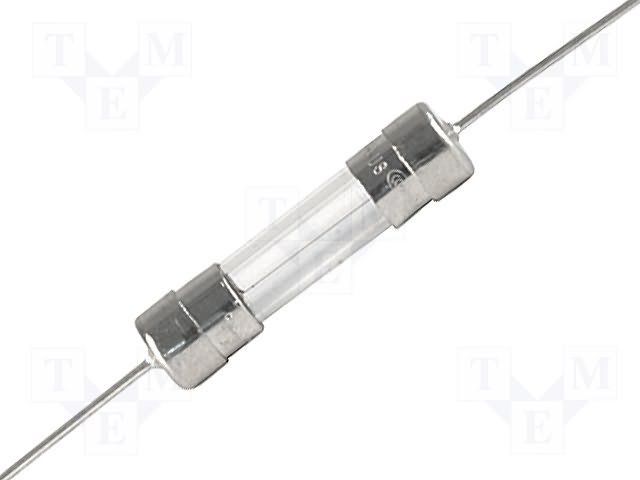

• Fuse type glass, fuse, time-lag
• Fuse size 5x20mm
• Breaking capacity 35A
• Rated current 315mA
• Rated voltage 250V AC
• Breaking characteristics 1,5 In: min 1 h, 2,1 In: max 120 s, 2,75 In: min 600 ms, 2,75 In: max 10 s, 4 In: min 150 ms, 4 In: max 3 s, 10 In: min 20 ms, 10 In: max 300 ms
• Max voltage drop 1.1V
• Manufacturer series FST
• Leads for soldering

Parametri

0.315A
250VAC
Lēns
