Apraksts

• Manufacturer VISHAY
• Type of diode rectifying
• Mounting THT
• Max. off-state voltage 0.6kV
• Load current 8A
• Semiconductor structure single diode
• Capacitance 50pF
• Kind of package tube
• Max. forward impulse current 125A
• Case TO220AC
• Max. forward voltage 1.5V
• Leakage current 0.5mA
• Heatsink thickness 1.14...1.39mm
• Reverse recovery time 50ns
• Features of semiconductor devices
• glass passivated
• ultrafast switching
• Gross weight1.808 g

Parametri

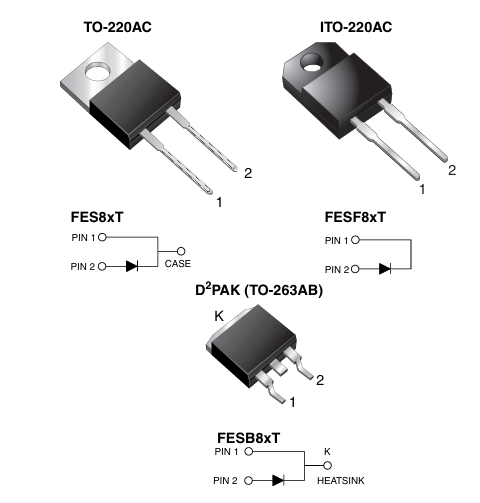

TO-220AC
THT
600V
8A
1 Diode

Papildu dokumentācija
