Apraksts

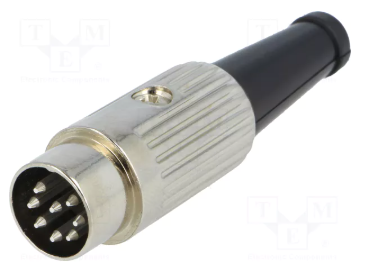

• Manufacturer DELTRON
• Type of connector DIN
• Connector plug
• Kind of connector male
• Number of pins 8
• Connector pinout layout 270°
• Spatial orientation straight
• Mechanical mounting for cable
• Electrical mounting soldering
• Rated voltage 34V
• Current rating 2A
• Contact plating silver plated
• Max. contact resistance: 10mΩ
• Operating temperature -25...70°C
• Enclosure material zinc alloy
• Plating material nickel
• Gross weight23.68 g

Parametri

8
Spraudnis
Uz vadu
DIN
Vadam

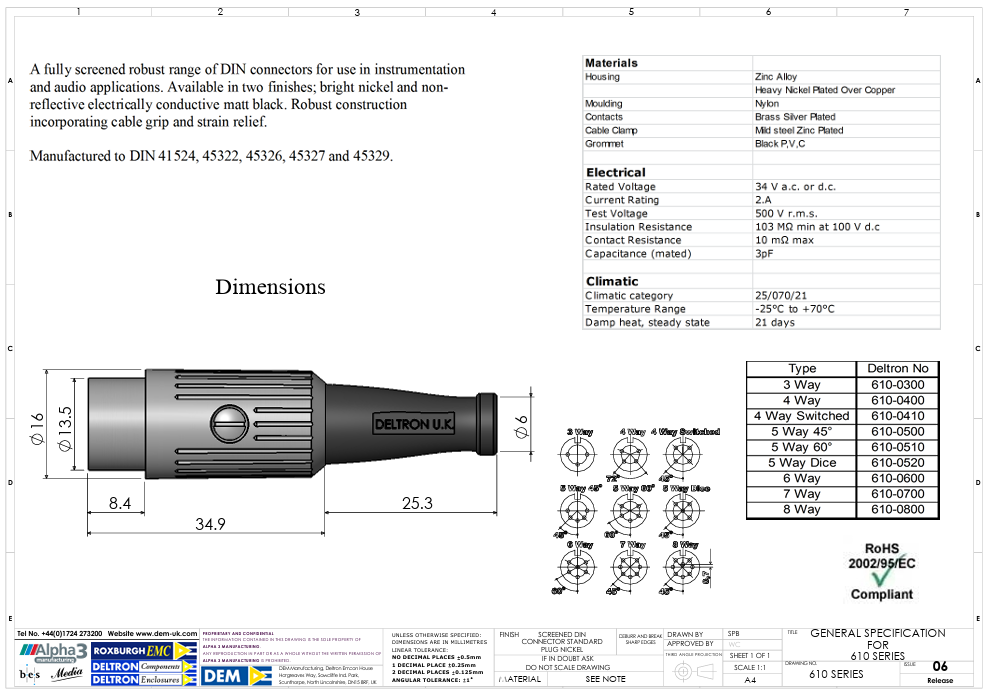

Papildu dokumentācija
