Apraksts

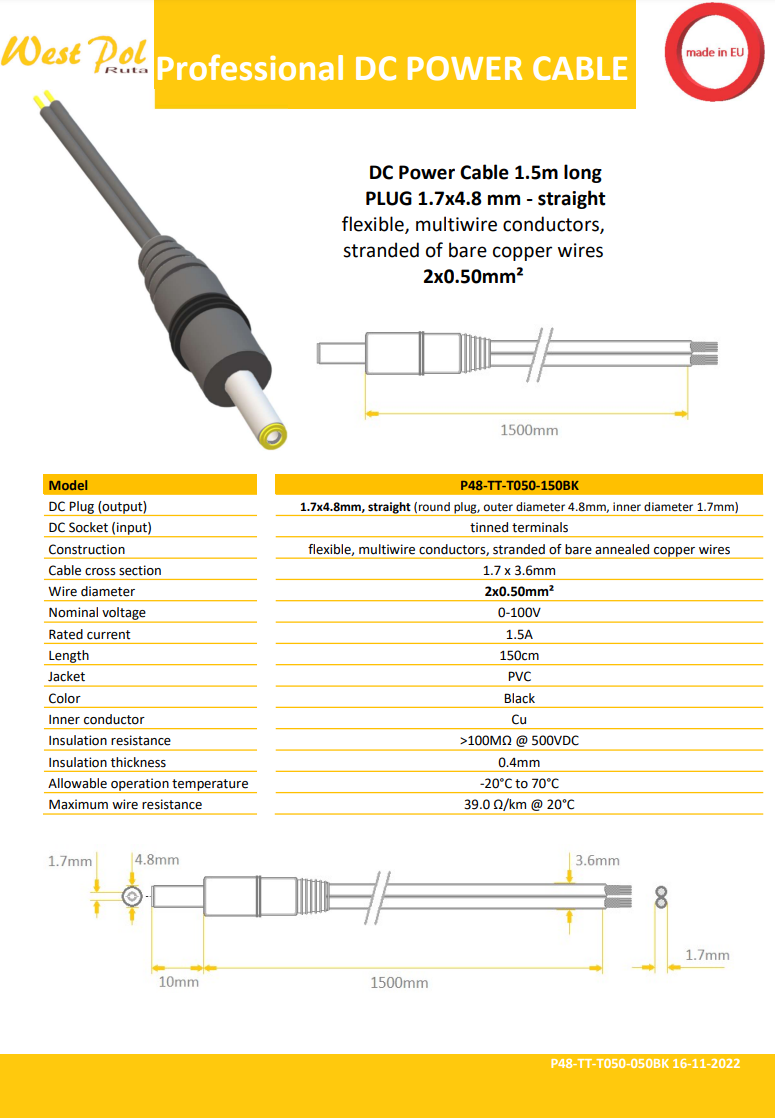

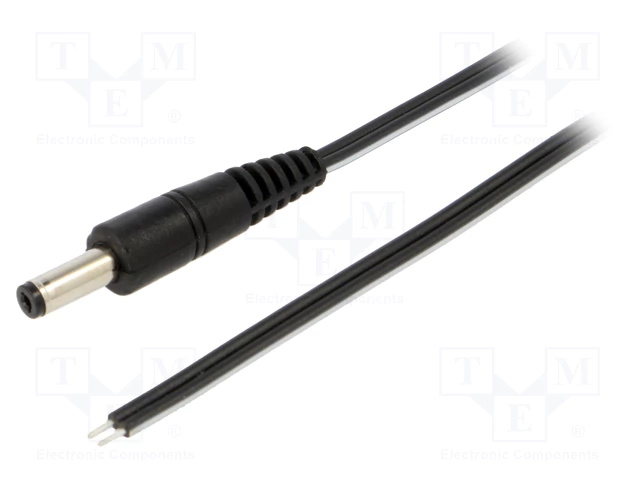

• Manufacturer WEST POL
• Type of connection cable mains DC
• Cable structure 2x0.5mm2
• Number of cores 2
• Core section 0.5mm2
• Solid and stranded conductors construction according to AWG
• Length of metal part 9mm
• Connector variant straight
• Insulation colour black
• Rated voltage 100V
• For products in the Cables and Wires category, a digit/digit number indicates:
• Rated volage U0/U
• where:
• U0 = cable nominal voltage between the conductor and the metal covering or earth
• U = cable nominal voltage between the phase conductors
• Max. operating current 1.5A
• Cable length 1.5m
• Cable outside dimensions 1.7x3.6mm
• Operating temperature -20...70°C
• Wire cross-section shape flat
• Wire insulation material PVC
• Shield structure unshielded
• Cable/adapter structure
• See more
• DC 4,8/1,7 plug
• wires
• Gross weight27.2 g

Parametri

4.8x1.7mm
Spraudnis
Ar vadu

Papildu dokumentācija
