Apraksts

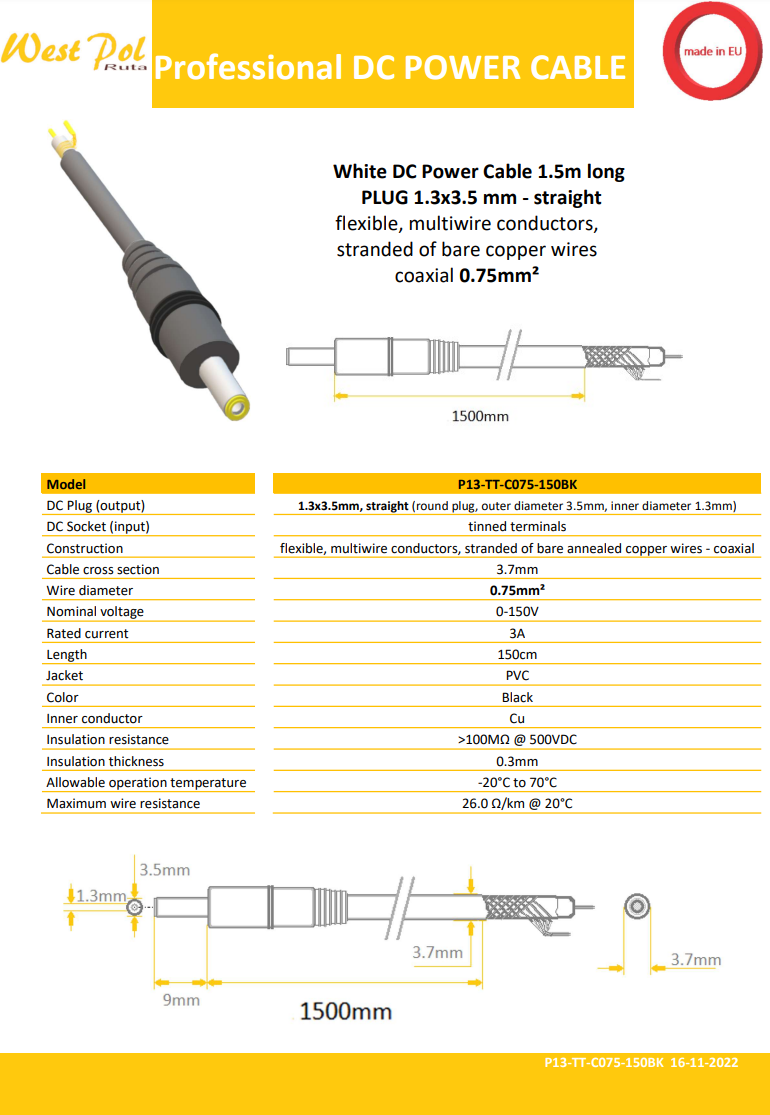

• Manufacturer WEST POL
• Type of connection cable mains DC
• Cable structure 1x0,75mm2
• Number of cores 1
• Core section 0,75mm2
• Solid and stranded conductors construction according to AWG
• Length of metal part 9mm
• Connector variant straight
• Insulation colour black
• Rated voltage 100V
• Max. operating current 3A
• Cable length 1,5m
• Cable outside dimensions Ø3,7mm
• Operating temperature -20...70°C
• Wire cross-section shape round
• Wire insulation material PVC
• Shield structure tinned copper braid
• Cable/adapter structure
• See more
• DC 3,5/1,3 plug
• wires
• Masa bruto44.1 g

Parametri

Spraudnis
Ar vadu
3.5x1.3mm

Papildu dokumentācija
