Apraksts

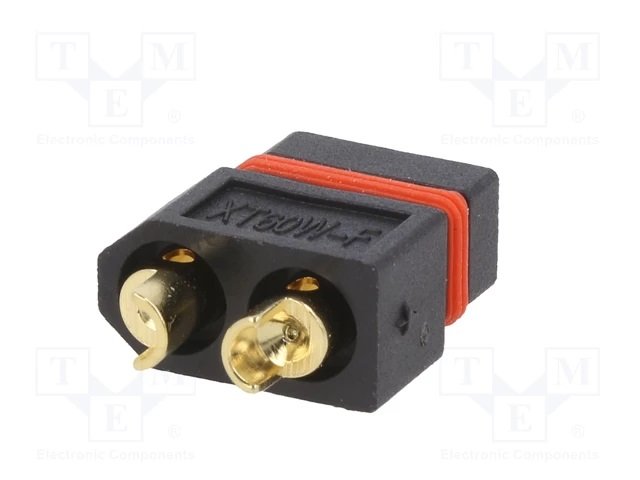

• Manufacturer AMASS
• Connector plug
• Type of connector DC supply
• Connector series XT60
• Kind of connector female
• Number of pins 2
• Mechanical mounting for cable
• Electrical mounting soldering
• Contact plating gold flash
• Colour black
• Current rating 40A
• Flammability rating UL94V-0
• Operating temperature -20...120°C
• Rated voltage  500V
• Spatial orientation  straight
• Contact material copper
• Mechanical durability 1000 cycles
• Additional information
• Gross weight: 3.29 g
• Manufacturer part number: XT60W-F

Parametri

500V
2
Ligzda
Taisns
40A
XT60

Papildu dokumentācija
