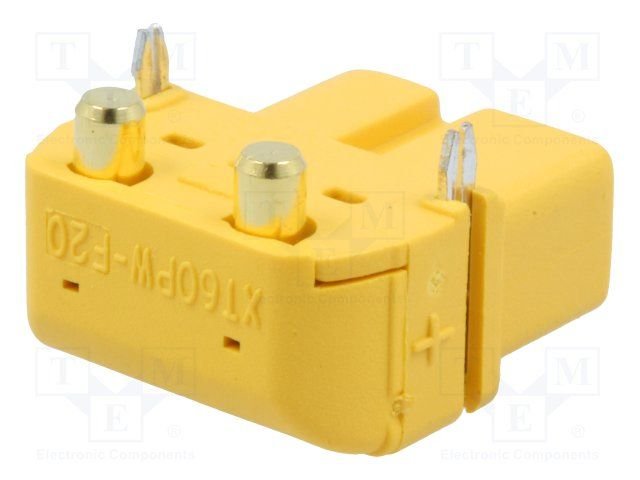

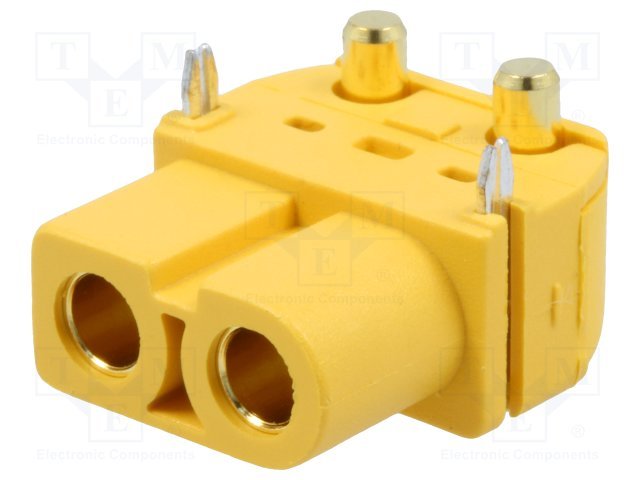

2Pin, XT60, "mama", 500V, 30A, lodejama PCB, leņķisks
2Pin, XT60, "mama", 500V, 30A, lodejama PCB, leņķisks
2Pin, XT60, "mama", 500V, 30A, lodejama PCB, leņķisks
2Pin, XT60, "mama", 500V, 30A, lodejama PCB, leņķisks 2Pin, XT60, "mama", 500V, 30A, lodejama PCB, leņķisks 2Pin, XT60, "mama", 500V, 30A, lodejama PCB, leņķisks

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

2Pin, XT60, "mama", 500V, 30A, lodejama PCB, leņķisks

Cena: 1.38 €
00026839
XT60PW-F
24
  • Apraksts

    • Manufacturer AMASS
    • Connector socket
    • Type of connector DC supply
    • Connector series XT60
    • Kind of connector female
    • Number of pins 2
    • Mechanical mounting on PCBs
    • Electrical mounting THT
    • Contact plating gold flash
    • Colour yellow
    • Current rating 30A
    • Flammability rating UL94V-0
    • Operating temperature -20...120°C
    • Rated voltage 500V
    • Spatial orientation angled 90°
    • Contact material brass
    • Mechanical durability 1000cycles
    • Body material polyamide Additional information
    • Gross weight: 3.245 g

    Parametri

    500V
    2
    Ligzda
    30A
    XT60
    Leņķisks 90°
