Apraksts

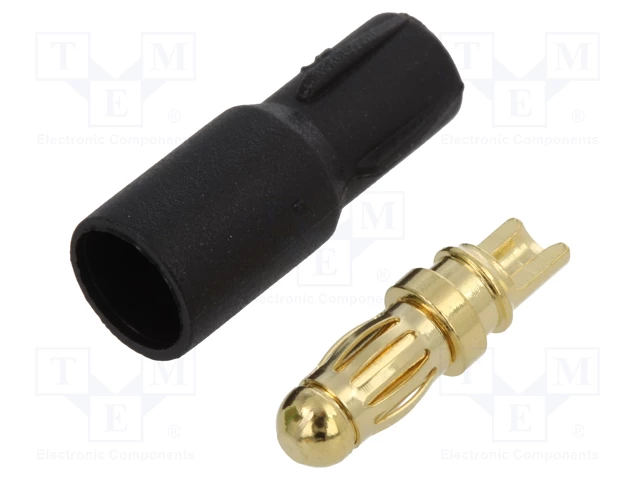

• Manufacturer AMASS
• Connector plug
• Type of connector DC supply
• Connector series SH3.5
• Kind of connector male
• Number of pins 1
• Mechanical mounting for cable
• Electrical mounting soldering
• Contact plating gold flash
• Colour black
• Current rating 20A
• Flammability rating UL94V-0
• ECE R-118:
• This regulation applies to fire testing of materials used in the interiors
• of motor vehicles, such as upholstery, floor coverings, etc.
• UL94:
• This standard is used to assess the flammability of plastic materials
• used in various industries, including the electronics, automotive
• and construction sectors.
• Operating temperature -20...120°C
• Rated voltage 500V
• For products in the Cables and Wires category, a digit/digit number indicates:
• Rated volage U0/U
• where:
• U0 = cable nominal voltage between the conductor and the metal covering or earth
• U = cable nominal voltage between the phase conductors
• Spatial orientation straight
• Information about relative position of each cable, terminals or PCB entry
• Wire size 16AWG
• Contact material copper
• Mechanical durability 1000 cycles
• Gross weight1.028 g

Parametri

500V
1
Spraudnis
Taisns
20A
SH3.5

Papildu dokumentācija
