Apraksts

• Manufacturer MEAN WELL
• Type of power supply switched-mode
• Kind of power supply modular
• Power 156W
• Output current 6.5A
• Number of outputs 1
• Body dimensions 159x97x30mm
• Weight 480g
• Operating temperature -30...70°C
• Electrical connection terminal block
• Mounting for building in
• Protection overheating,  overload,  short-circuit,  voltage growth
• Efficiency 89%
• Series LRS-150
• Kind of case 241A
• Supply voltage 85...132 / 170...264V AC,  240...370V DC
• Output voltage 21.6...28.8V DC,  24V DC

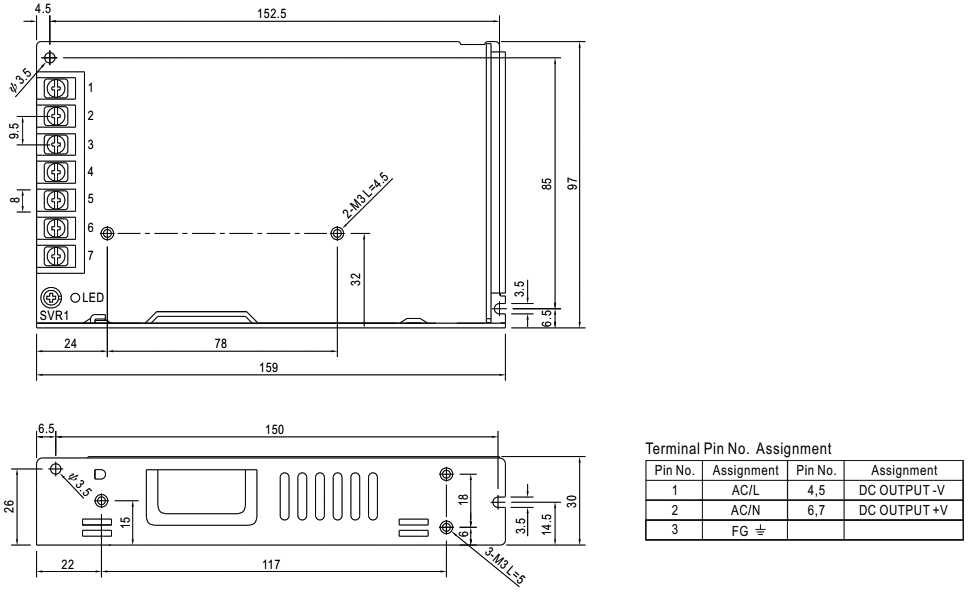

• Dimensions see
• Power supply/converter features
• AC input range selectable by switch
• no load power consumption <0,5W
• rated parameters obtained at full load
• Additional information
• Gross weight: 431.6 g
• Guarantee (months): 36
• Manufacturer part number: LRS-150-24
