Apraksts

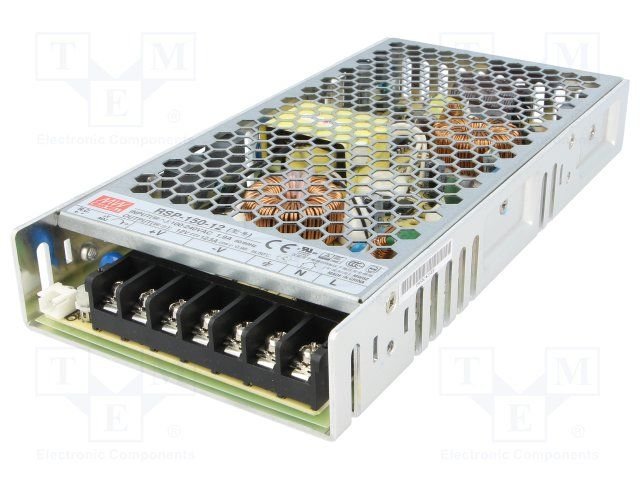

• Manufacturer MEAN WELL
• Type of power supply unit switched-mode
• Kind of power supply modular
• Power 150W
• Output voltage 12V DC, 11.4...13.2V DC

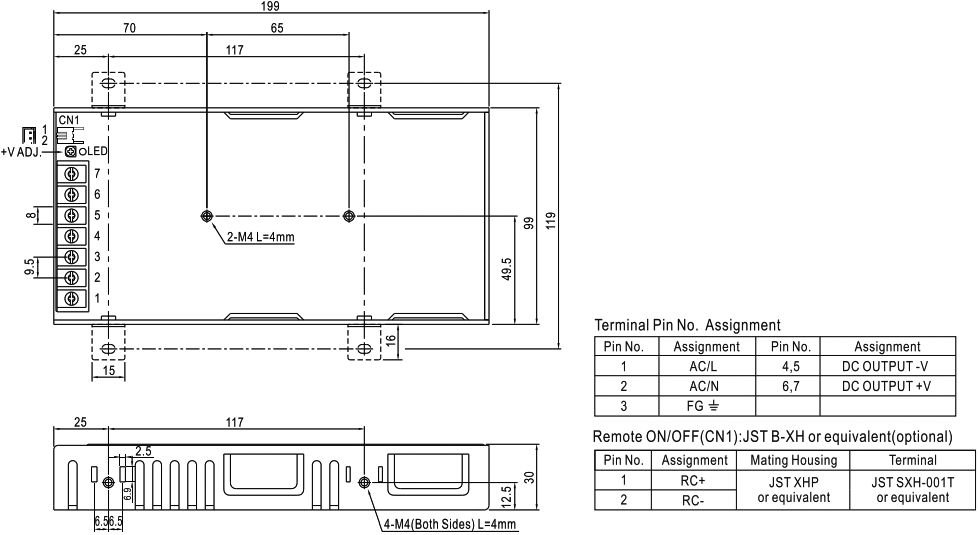

• Body dimensions 199 x 99 x 30mm
• Output current 12.5A
• Power supply/converter features rated parameters obtained at full load
• Weight 600g
• Number of outputs 1
• Mounting for building in
• Operating temperature -30...70°C
• Electrical connection terminal block
• Supply voltage 85...264V AC, 120...370V DC
• Protection overload, overheating, voltage growth, short-circuit
• Efficiency 90%
• Series RSP-150
• Kind of case 215A
• Additional functions active PFC
• Related items TBC-07

Parametri

Skrūvju spailes
Modulis
12VDC
12.5A
150W

Papildu dokumentācija
