Apraksts

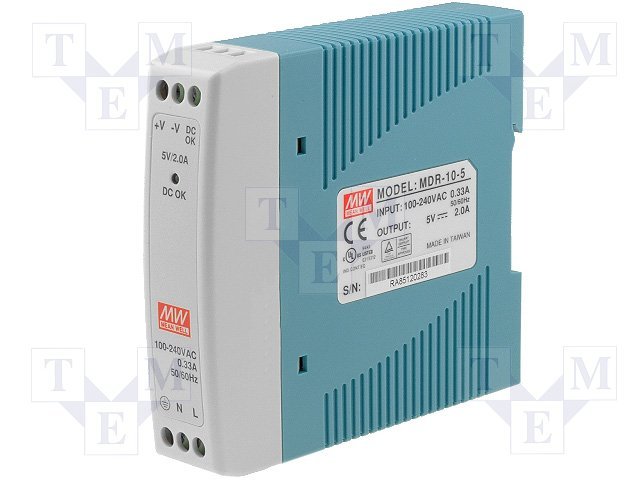

• Manufacturer MEAN WELL
• Pwr sup. unit type switched-mode
• Power 10W
• Output voltage 5V DC
• Output current 2A
• Supply voltage 120...370V DC, 85...264V AC
• Electrical connection terminal block
• Mounting DIN

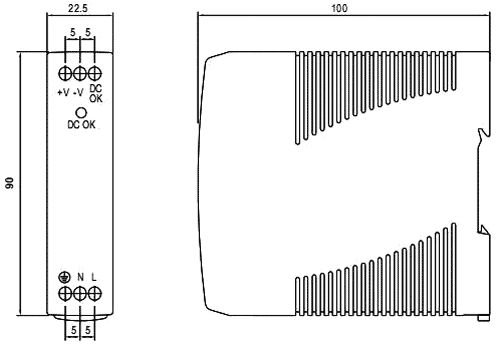

• Body dimensions 22.5 x 90 x 100mm
• Weight 170g
• Number of outputs 1
• Operating temperature -20...70°C
• Protection overload, overheating, overvoltage, short-circuit
• Additional functions output voltage correctness indication (NO contact)
• Power supply/converter features rated parameters obtained at full load

Parametri

Skrūvju spailes
DIN sliedei
5VDC
2A
10W

Papildu dokumentācija
