Apraksts

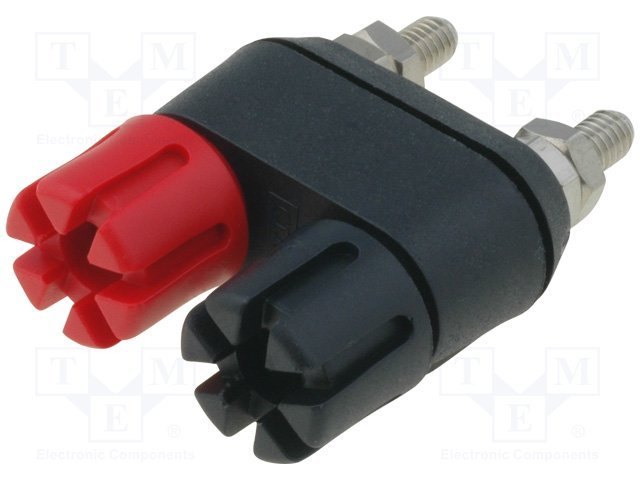

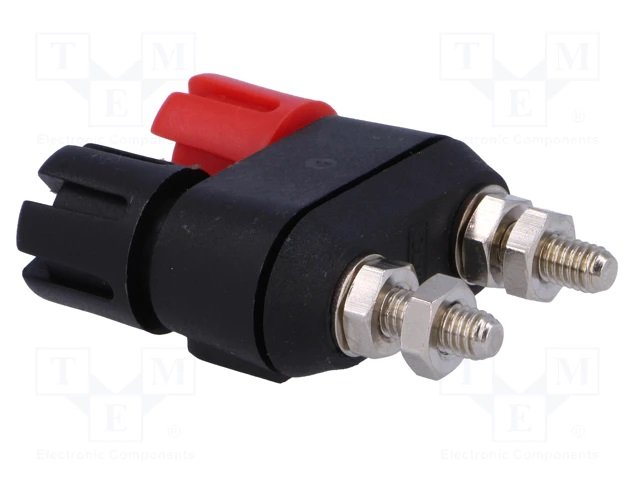

• Manufacturer CLIFF
• Connector socket
• Connector type 4mm banana
• Rated current 30A

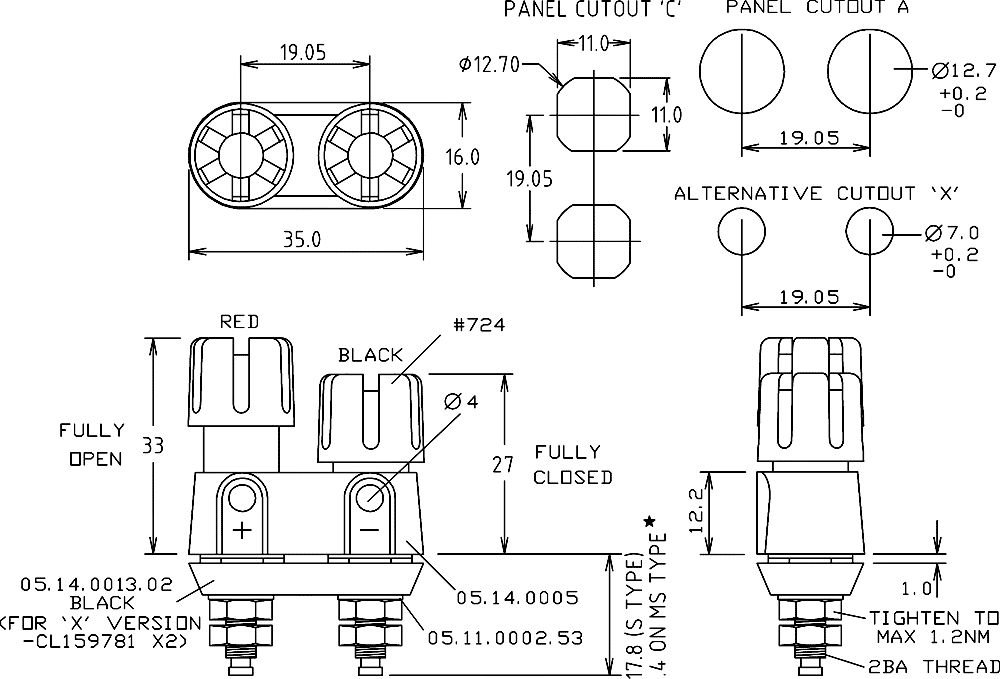

• Mounting hole diameter Ø12.7mm
• Mounting screwed, on panel
• Contact plating nickel plated
• Contact material nickel
• Connector variant double
• Connection screw terminal
• Panel thickness max 17.8mm
• Flammability rating UL94HB
• Mounting holes pitch 19.05mm
• Width 35mm
• Maximum height 33mm

Parametri

Melna+sarkana krasa
Panelim
"Banans" Ø4mm
2 ligzdas

Papildu dokumentācija
