Apraksts

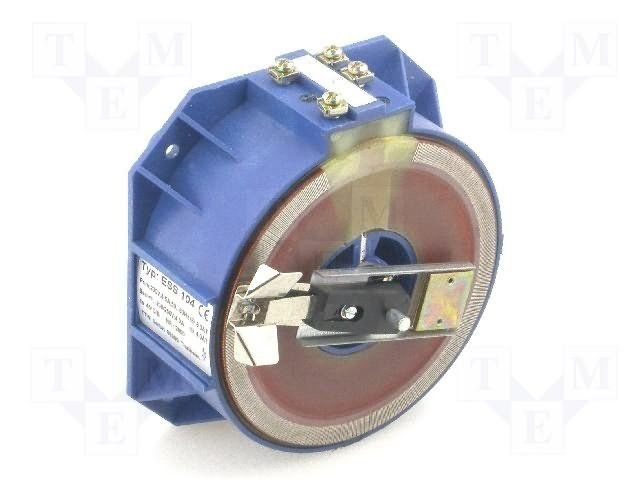

• Manufacturer Thalheimer-Trafowerke
• Transformer type variable autotransformer
• Primary voltage 230V AC
• Output voltage 1...250V
• Secondary winding current 1 4A
• Weight 3.7kg

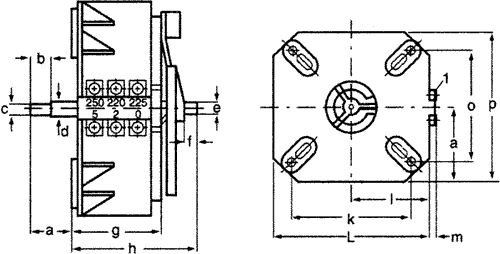

• A dimension 32mm
• B dimension 16.5mm
• C dimension 6mm
• D dimension 12mm
• E dimension 6mm
• F dimension 6mm
• Dimension G 6mm
• H dimension 84mm
• I dimension 78.5mm
• K dimension 112mm
• L dimension 151mm
• M dimension 8mm
• O dimension 112mm
• P dimension 146.5mm
