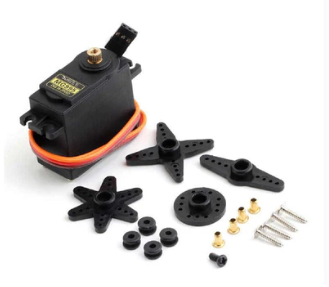

Modulis: servopiedziņa ar metāla zobratu MG995 (360 grādu rotācija)
Modulis: servopiedziņa ar metāla zobratu MG995 (360 grādu rotācija)

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Modulis: servopiedziņa ar metāla zobratu MG995 (360 grādu rotācija)

Cena: 7.60 €
  • Apraksts

    • MG995 Metal Gear Servo Motor (360 Degree Rotation)
    • TowerPro MG995 – Continuous Rotation 360° Metal Gear Servo Motor is a high-speed standard servo can rotate 360 degrees. You can use any servo code, hardware or library to control these servos, so it’s great for beginners who want to make stuff move without building a motor controller with feedback & gearbox, especially since it will fit in small places. The MG995 Metal Gear Servo also comes with a selection of arms and hardware to get you set up nice and fast.
    • The optimized performance and reliability of this servo have made it the favorite choice of many RC hobbyists.
    • It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
    • This TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is special among all the available servo motors because its operation is very different from that of a standard servo. As instead of going to a specified angle, this servo will be static at a 1.5ms pulse, a longer pulse gives forward rotation and a shorter pulse give backward rotation.
    • They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.
    • Wire Description:-
    • RED – Positive
    • Brown – Negative
    • Orange – Signal
    • Specifications:-
    • Weight: 55g
    • Dimension : 40.7 × 19.7 × 42.9 mm (LxWxH)
    • Operating temperature: -30 ~ + 60 °
    • Deadband setting: 4 microseconds
    • Rotation angle: 360°
    • Torque: 4.8V: 130.5 oz-in (9.40 kg-cm), 6.0V: 152.8 oz-in (11.00 kg-cm)
    • Speed: 4.8V: 0.20 sec/60°, 6.0V: 0.16 sec/60°
    • Servo type: analog servo
    • Operation Voltage : 4.8 – 7.2Volts
    • Gear Type: All Metal Gears
    • Stable and shockproof double ball bearing design
    • Control System: Analog
    • Features:-
    • The connection cable is thicker.
    • Equips high-quality motor.
    • High resolution
    • Accurate positioning
    • Fast control response
    • Constant torque throughout the servo travel range
    • Excellent holding power
    • Product Images are shown for illustrative purposes, may differ from actual product.
