Apraksts

• Model: HX- 2S-A10
• Maximum working current: 8A
• Maximum instantaneous current: 16A
• Static current: less than 10uA
• Resistance: less than 300 m Ω
• Charging voltage: 7 V - 9V
• Overcharging range: 4.25-4.35V plus or minus 0.05V
• Over voltage range: 2.5-3.0V plus or minus 0.05 V
• Working temperature: - 40 - + 50
• Storage conditions: - 40 - + 80
• Size: 41 * 8 * 2.2 mm
• Short circuit protection: to protect and restore must charge

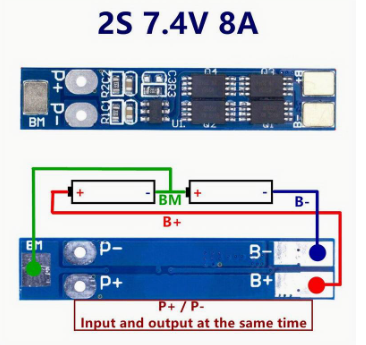

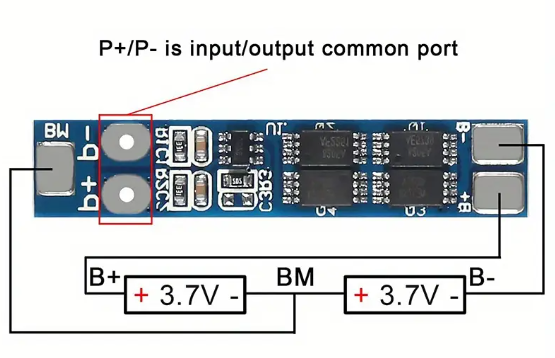

• Welding Point Description:
• · B + battery anode;
• · B - connect battery negative terminal;
• · MMB connect battery 1 to battery 2;
• · P + charging/discharge correct poles (charging end/discharge end sharing);
• · P - charging/discharge terminal negative terminal (charging end/discharge end sharing).
• Package Included:
• 5 x 2S 8.4V-9V 8A 18650 Lithium Battery Charger Protection Board
