•  Operating voltage:DC 4.5 ~ 30V
•  Measure voltage: DC 0 ~ 100V
•  Minimum resolution(V): 0.1V
•  Measure current :100A (external shunt included)
•  Minimum resolution(A): 0.01A
•  Operating current: <20mA

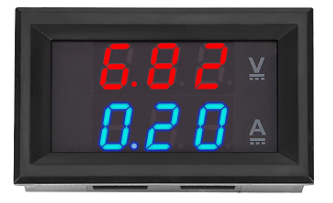

•  Display: three 0.28" LED digital tube
•  Display color: Red and Blue (two-color display)
•  Dimensions: 48 x 29 x 21mm
•  Mounting cutout: 45.5 x 26.5mm
•  Refresh rate: about 500mS / times
•  Measure accuracy: 1% (± 1 digit)
•  Operating temperature: -10 to 65° c
•  Operating Humidity: 10 to 80% (non-condensing)
•  Working pressure: 80 to 106 kPa

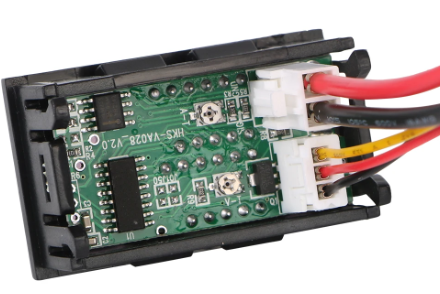

• Wiring:
•  Black line (thin): vacant or buck circuit (module) negative
•  Red line (thin): power supply+
•  Black line (thick): COM, common measuring
•  Red line (thick): PW+, measuring terminal voltage input positive
•  Yellow line (thick): IN+, current input+

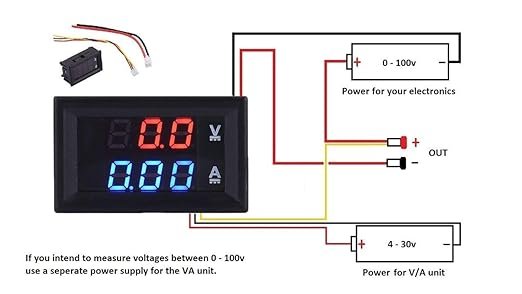

•  (Please refer to the wiring diagrams for more details)
• Notice:
•  The voltage between the thin red and thin black lines must be within DC 4.5-30V
•  The ammeter can only be connected to the negative of the device under test
•  Exceeds 5A, long-term full load working continuously, it is recommended that the
• measurement side of the leads are directly soldered to the socket
