• Description:
• Working mode: Class D (PWM modulation type)
• Chip selection: PAM8610
• Power supply range: DC6V-15V (Nature Protection) (Recommended power: DC 12V2A)

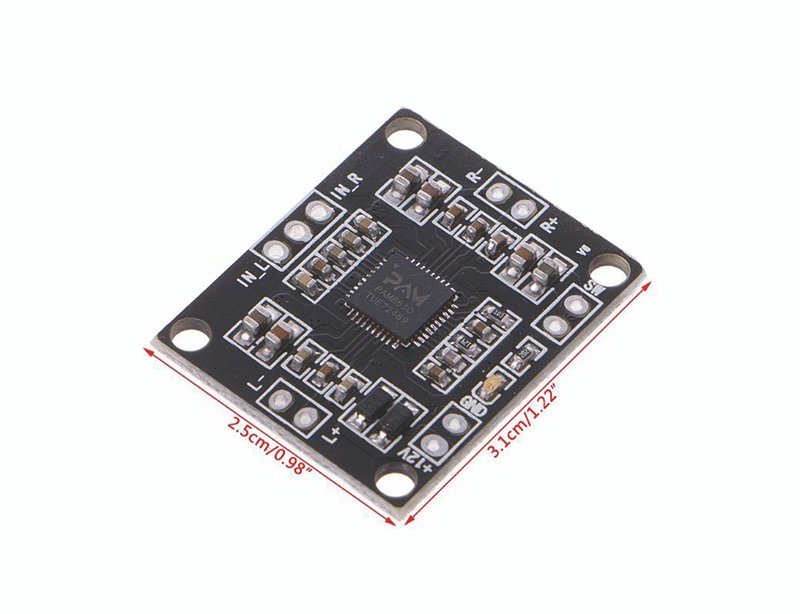

• Dimensions: 25 * 31 * 2.5mm
• Channel Type: Dual Channel
• Output power: 10W * 2 (8R load) / 15W * 2 (4R load) (Recommended speaker: 10-30W)
• Frequency response: 20HZ-15KHZ
• Quiescent current: 20mA (DC12V)
• SNR: 90%
• Input impedance: 15K
• Output impedance: 4-8R
• Harmonic Distortion: <0.1%
• Size:28x22x2.5mm
• Speakers:10-100W
