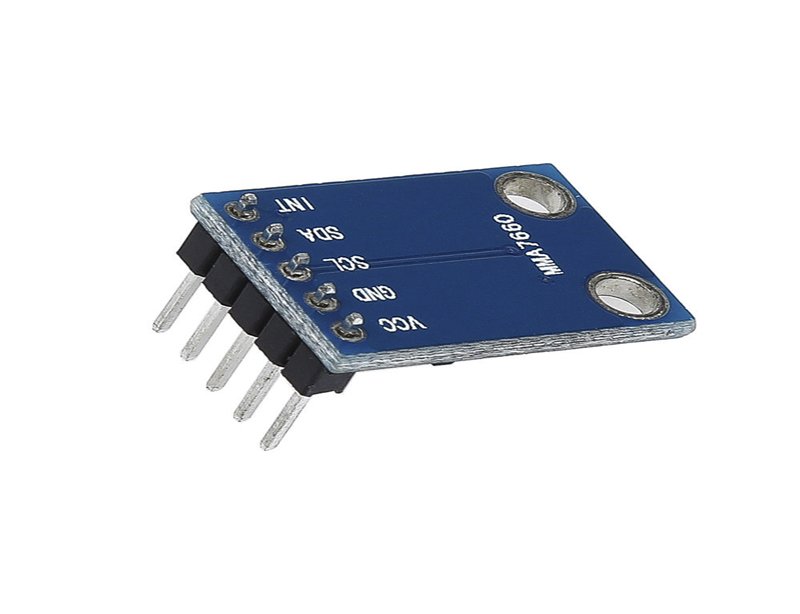

• Manufacturer OKYSTAR
• Type of sensor position
• Kind of sensor accelerometer
• Interface I2C
• Integrated circuit MMA7660
• Accelerometer measuring range ±1.5g
• Information product is not a working device, but only component
• Supply voltage
• 3...5V DC
• Gross weight2.085 g
• The MMA7660FC ± 1.5 g 3-axis digital output accelerometer taking into account that this is a very low power consumption, low profile sensor has a capacitive MEMS low-pass filter, compensation for 0g offset and gain errors, and converted to 6-bit per second user-configurable digital sample value, the device can be used for sensor data changes, product positioning, and gesture detection through an interrupt pin (INT) the device is mounted in a small 3mm x 3mm x0.9mm DFN packaging.
