Apraksts

• Manufacturer ONPOW
• Switch type vandal resistant
• Stable positions number 1-position
• Contacts configuration SPDT
• AC contacts rating
• (at resistance load) 0.5 A / 220 VAC
• DC contacts rating
• (at resistance load) 1 A / 24 VDC
• Sealing IP67
• Switching method ON-(ON)
• Backlight colour yellow
• Leads for soldering
• Operating temperature -20...55°C
• Electrical life 50000cycles
• Max. contact resistance: 50mΩ
• Switching torque 5N
• Mechanical durability 1000000cycles
• Illumination LED 12V AC/DC, point light

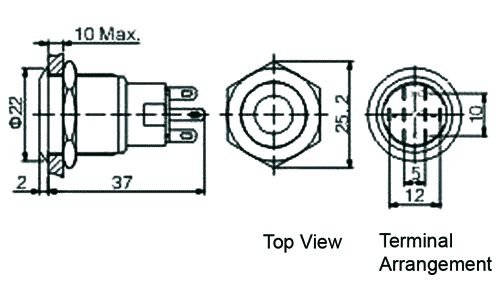

• Mounting hole diameter Ø19mm
• Body colour silver
• Button shape convex
• Body material stainless steel
• Test voltage 2kV
• Contact material silver alloy

Parametri

SPDT-NO
0.5A/220VAC
1A/24VDC
ON-(ON)
Poga
Bez fiksācijas
M19
LED12VAC/DC
