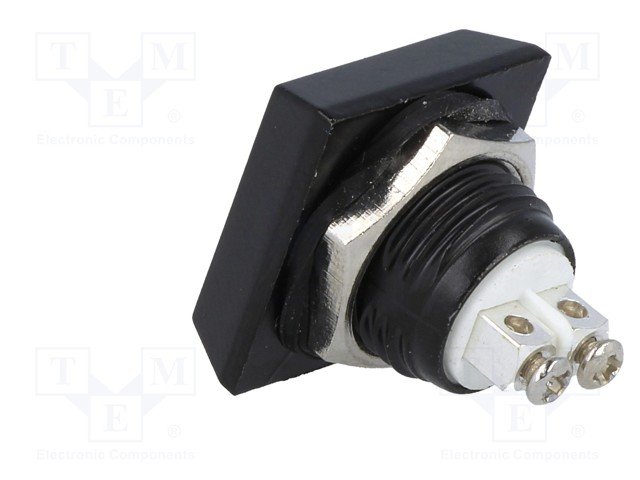

Antivandala poga, SPST-NO, OFF-(ON), 2A/36VDC, IP65, 17.5x17.5mm, M12mm, zaļa
Antivandala poga, SPST-NO, OFF-(ON), 2A/36VDC, IP65, 17.5x17.5mm, M12mm, zaļa
Antivandala poga, SPST-NO, OFF-(ON), 2A/36VDC, IP65, 17.5x17.5mm, M12mm, zaļa
Antivandala poga, SPST-NO, OFF-(ON), 2A/36VDC, IP65, 17.5x17.5mm, M12mm, zaļa Antivandala poga, SPST-NO, OFF-(ON), 2A/36VDC, IP65, 17.5x17.5mm, M12mm, zaļa Antivandala poga, SPST-NO, OFF-(ON), 2A/36VDC, IP65, 17.5x17.5mm, M12mm, zaļa

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Antivandala poga, SPST-NO, OFF-(ON), 2A/36VDC, IP65, 17.5x17.5mm, M12mm, zaļa

Cena: 3.05 €
00009865
V12S-10G-A
18
  • Apraksts

    • Specification
    • Switch type vandal resistant
    • Stable positions number 1-position
    • Contacts configuration SPST-NO
    • DC contacts rating
    • (at resistance load) 2 A / 36 VDC
    • Sealing IP65
    • Switching method OFF-(ON)
    • Leads screw terminals
    • Operating temperature -20...55°C
    • Electrical life 200000cycles
    • Max. contact resistance: 50mΩ;
    • Switching torque 5N
    • Mechanical durability 1000000cycles
    • Mounting hole diameter Ø;12mm
    • Body colour black
    • Body material aluminium
    • Button shape convex
    • Min. insulation resistance 1000MΩ;
    • Height above panel 7.2mm
    • Actuator colour green
    • Button material PBT

    Parametri

    SPST-NO
    2A/36VDC
    OFF-(ON)
    Poga
    Bez fiksācijas
    M12
    Bez apgaismojuma
