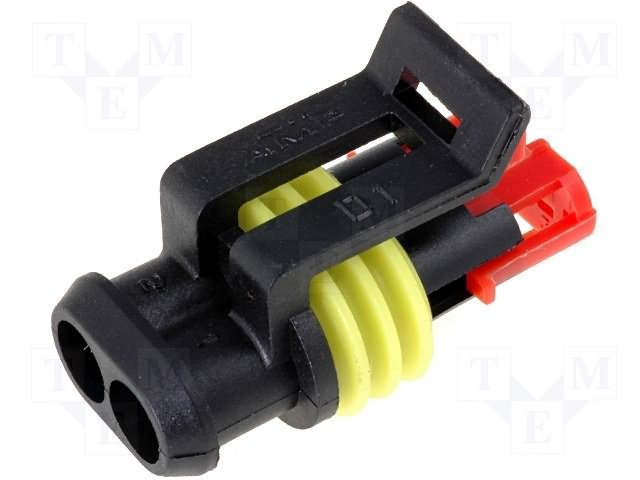

AMP serija Superseal 1.5 "mama" 2PIN, IP67, 14A/24VDC
AMP serija Superseal 1.5 "mama" 2PIN, IP67, 14A/24VDC
AMP serija Superseal 1.5 "mama" 2PIN, IP67, 14A/24VDC AMP serija Superseal 1.5 "mama" 2PIN, IP67, 14A/24VDC

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

AMP serija Superseal 1.5 "mama" 2PIN, IP67, 14A/24VDC

Cena: 1.04 €
00012743
AMP-0-0282080-1
94
  • Apraksts

    • Manufacturer TE Connectivity
    • Type of connector wire-wire
    • Connector series Superseal 1.5
    • Connector plug
    • Kind of connector female
    • Number of pins 2
    • IP rating IP67
    • Operating temperature -40...125°C
    • Locking system latch
    • Conform to the norm DIN 40050,  IEC 529
    • Width 15.3mm
    • Connector variant w/o contacts
    • Rated voltage  24V DC
    • Material polyamide

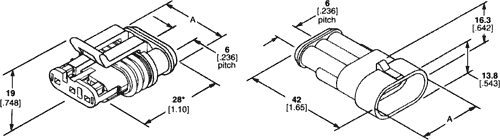

    • Dimensions see
    • Additional information
    • Gross weight: 2.58 g
    • Manufacturer part number: 282080-1
