Apraksts

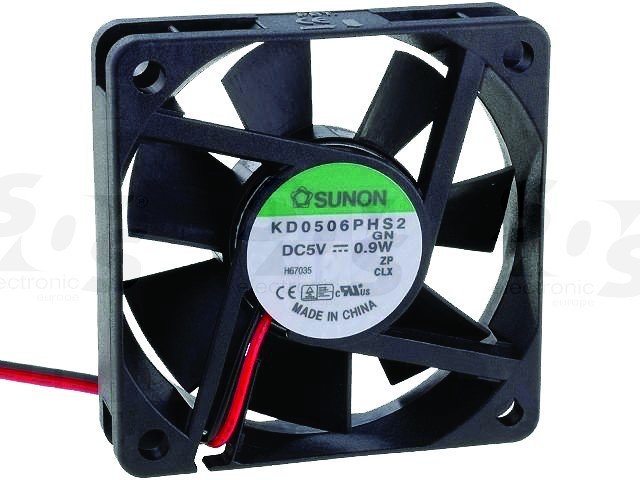

• MODEL: KD0506PHS2
• 1-1. Rated Voltage : 5 VDC
• 1-2. Operating Voltage Range : 4-6 VDC
• 1-3. Starting Voltage : 4 VDC
• 1-4. Rated Speed : 4000 RPM
• ±
• 400 RPM
• 1-5. Air Delivery : 17.8 CFM
• 1-6. Static Pressure : 0.135 Inch-H
• 2
• O
• 1-7. Rated Current : 0.39 AMP
• 1-8. Rated Power : 1.9 WATTS
• 1-9. Noise Level : 31 dB(A)
• 1-10. Direction of Rotation : Counter-clockwise viewed front fan blade
• 1-11. Operating Temperature : -10 to +70 Deg.C
• 1-12. Storage Temperature : -40 to +70 Deg.C
• 1-13. Bearing System : Lubricated sleeve bearing system
• 1-14. Weight : 45g
• 1-15. Safety : UL/CSA/TUV Approvals
• 1-16. Vibration : Vibration of acceleration 1.5G and
• Frequency 5~50~5Hz is applied in the
• 3 directions(X,Y,Z) for 30 minutes, each
• Direction at the cycle of 1 minute.

Parametri

60x60x15mm
5VDC
uz ass
ritgultnis
30.58m3/st
32dBA
3800apgr.
1W
