Apraksts

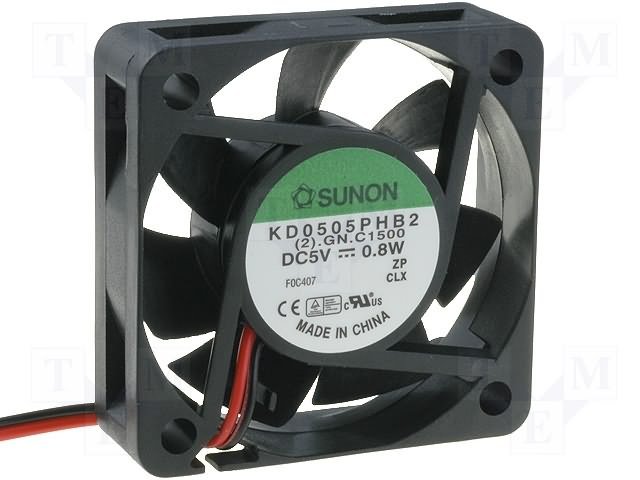

• Specification
• Fan type DC
• Fan dimensions 50x50x15mm
• Bearing type ball bearing
• Fans efficiency 22.1m3/h
• Noise level 30dBA
• Supply voltage 5V DC
• Power consumption 0.8W
• Operating voltage 4...6V
• Rotational rate/speed 4700 (±20%)rpm
• Weight 39g
• Rated current 0.161A
• Current and power consumption tolerance ±15%
• Min. insulation resistance 500MΩ;
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class E
• Operating temperature -10...70°C
• Static pressure 4.316mm H2O
• Leads 2 leads
• Flammability rating UL94V-0
• Fan motor brushless DC motor
• Cable length 300mm
• Wire size 26AWG

Parametri

50x50x15mm
5VDC
uz ass
ritgultnis
22.1m3/st
30dBA
4700apgr.
0.8W

Papildu dokumentācija
