Apraksts

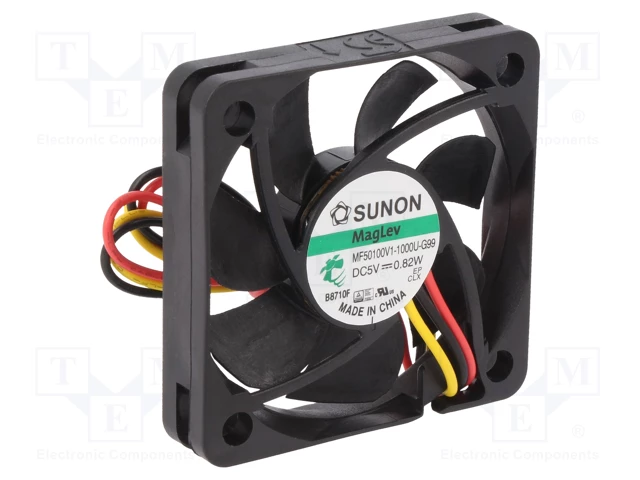

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 3.5...6V
• Fan dimensions 50x50x10mm
• Power consumption 0.78W
• Current rating 0.155A
• Fan efficiency 23.32m3/h
• Noise level 30.7dBA
• Kind of Bearing Vapo
• Signal output F type
• F type - Frequency Generator
• R type - Rotation Detector
• Rotational rate/speed 5800rpm
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads lead x3
• Operating temperature -10...70°C
• Cable length 0.295m
• Flammability rating UL94V-0
• ECE R-118:
• This regulation applies to fire testing of materials used in the interiors
• of motor vehicles, such as upholstery, floor coverings, etc.
• UL94:
• This standard is used to assess the flammability of plastic materials
• used in various industries, including the electronics, automotive
• and construction sectors.
• Additional functions Autorestart
• Fan motor brushless DC
• Static pressure 3.81mm H2O
• Wire size 26AWG
• Supply voltage
• 5V DC
• Gross weight19.68 g

Parametri

50x50x10mm
5VDC
uz ass
MagLev
23.32m3/st
30.7dBA
5800apgr.
0.78W
