Apraksts

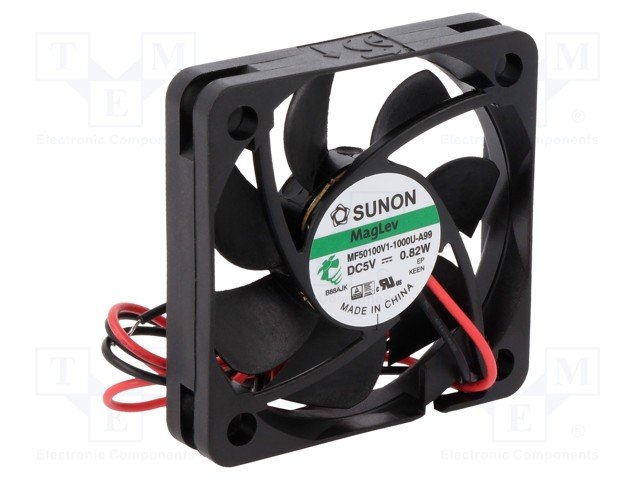

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 5V DC
• Fan dimensions 50x50x10mm
• Power consumption 0.78W
• Current rating 0.155A
• Fan efficiency 23.32m3/h
• Noise level 30.7dBA
• Kind of Bearing Vapo
• Rotational rate/speed 5800rpm
• Weight 19.5g
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 295mm
• Flammability rating UL94V-0
• Additional functions Autorestart
• Fan motor brushless DC
• Static pressure 3.81mm H2O
• Operating voltage 3.5...6V
• Wire size 26AWG
• Additional information
• Gross weight: 19.2 g
• Manufacturer part number: MF50100V1-1000U-A99

Parametri

50x50x10mm
5VDC
uz ass
MagLev
23.32m3/st
30.7dBA
5800apgr.
0.78W
