Apraksts

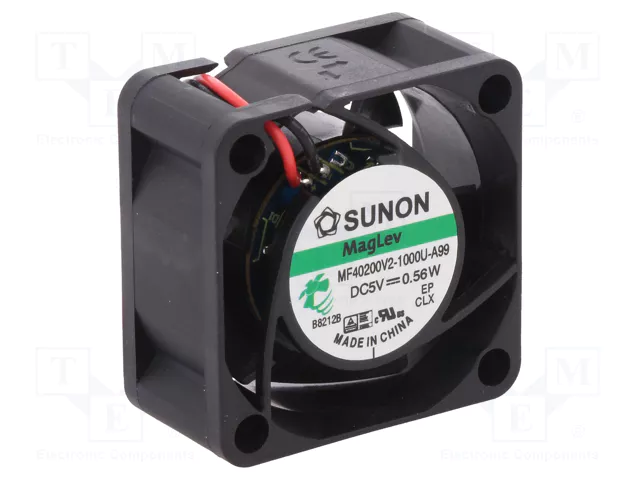

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 3.5...6V DC
• Fan dimensions 40x40x20mm
• Power consumption 0.54W
• Current rating 0.107A
• Fan efficiency 13.01m3/h
• Noise level 21dBA
• Kind of Bearing Vapo
• Rotational rate/speed 6000rpm
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads lead x2
• Operating temperature -10...70°C
• Cable length 0.305m
• Flammability rating UL94V-0
• Additional functions autorestart
• Fan motor brushless DC
• Static pressure 4.31mm H2O
• Wire size 26AWG
• Supply voltage
• 5V DC
• Gross weight28.18 g

Parametri

40x40x20mm
5VDC
uz ass
MagLev
21dBA
13.01m3/st
6000apgr.
0.54W

Papildu dokumentācija
